depth:
28 in
height:
33-3/8 in
manufacturer:
Goodman
mpn:
DM80VE0603BN
seer:
0.8
voltage:
1 Ph
weight:
107
width:
17-1/2 in
Product Description

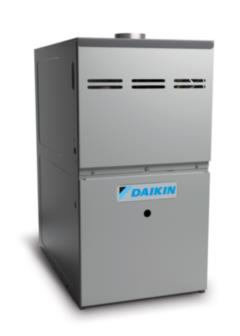

Goodman - DM80VE0603BN Daikin 80% AFUE DM80VE Gas Furnace Multi Speed ECM, Two Stage, Upflow/Horizontal, 60,000 BTUH/H,
Specification :
- Heavy-duty stainless-steel dual-diameter, tubular heat exchanger
- Two-stage gas valve provides quiet, economical heating
- Durable Silicon Nitride igniter
- Quiet two-speed draft inducer
- Self-diagnostic control board
- Efficient and quiet variable-speed airflow system
- Multiple continuous fan speed options offer quiet air circulation
- California Low NOx emissions-compliant models available
- For installation in California¢â‚¬â„¢s South Coast Air Quality Management District (SCAQMD) only:
- Does not meet the SCAQMD Rule 1111 14 ng/J NOx emission limit, and thus is subject to a mitigation fee of up to $450
- Not eligible for the SCAQMD Clean Air Furnace Rebate Program
- AHRI Certified
- ETL Listed
Cabinet Features :
- * Installation available in upflow, horizontal left or righ.
- * Convenient left or right connection for gas and electrical service
- * Cabinet air leakage (QLeak) ¢° ¤ 2%
- * Heavy-gauge steel cabinet with durable baked-enamel finish
- * Fully insulated heat exchanger and blower section
Additional Information
Manufacturer Part NumberDM80VE0603BN
Unit Depth28 in
Unit Height33-3/8 in
Unit Width17-1/2 in
Efficiency0.8
Family DescriptionMulti-Speed Two Stage Gas Furnace up to 80% AFUE
Min. Circuit8.7 A
Model Efficiency0.8
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyDM80VE
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight107 lb
Airflow Rate High Cooling1200 ft‚ ³/min
Motor Speed TypeMulti Speed ECM
Heating Capacity Rated60000 Btu/H
AFUE80 %
High-Fire Input Capacity60000 Btu
High-Fire Output Capacity48,000
Blower Motor RPM1200 r/min
