depth:
28-7/8 in
height:
34-1/2 in
manufacturer:
Goodman
mpn:
DM96HS0804CN
seer:
0.96
voltage:
1 Ph
weight:
139
width:
21 in
Product Description

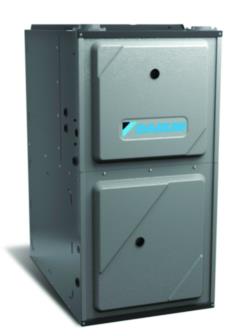

Goodman - DM96HS0804CN Daikin 96% AFUE DM96HS Gas Furnace Multi Speed PSC, Two Stage Convertible, Upflow/Horizontal, 80000 BTUH/H,
Specification :
- Heavy-duty stainless-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- Two-stage convertible gas valve automatically adjusts to high or low stage
- Durable Silicon Nitride igniter
- Quiet single-speed induced draft blower
- Self-diagnostic control board with constant memory fault code history output to a LED
- All models comply with California 40 ng/J Low NOx emissions standard
- AHRI Certified
- ETL Listed
Cabinet Features :
- * Designed for multi-position installation. DM96HS: upflow, horizontal left or right DC96HS: downflow, horizontal left or right
- * Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
- * Easy-to-install top venting with optional side venting
- * Convenient left or right connection for gas and electrical service
- * Cabinet air leakage (QLeak) less than 2%
- * Heavy-gauge steel cabinet with durable finish
- * Fully insulated heat exchanger and blower section
- * Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications
Additional Information
Manufacturer Part NumberDM96HS0804CN
Unit Depth28-7/8 in
Unit Height34-1/2 in
Unit Width21 in
Efficiency0.96
Family DescriptionTwo-Stage Convertible Multi-Speed Gas Furnace Up to 96% AFUE
Min. Circuit11.7 A
Model Efficiency0.96
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyDM96HS
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight139 lb
Airflow Rate High Cooling1600 ft‚ ³/min
Motor Speed TypeMulti Speed PSC
Heating Capacity Rated80000 Btu/H
AFUE96 %
High-Fire Input Capacity80000 Btu
High-Fire Output Capacity76800
Blower Motor RPM1075 r/min
