Product details
depth: 28-7/8 in
height: 34-1/2 in
manufacturer: Goodman
mpn: DM96SE1205DN
seer: 0.96
voltage: 1 Ph
weight: 156
width: 24-1/2 in
Product Overview

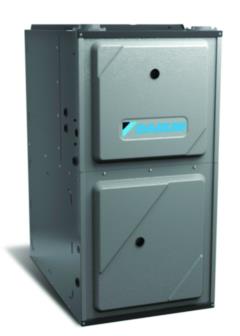

Daikin 96% AFUE DM96SE Gas Furnace Multi Speed ECM, Single Stage, Upflow/Horizontal, 120000 BTUH/H,
Specification :
- Heavy-duty stainless-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- Single-stage gas valve
- Durable Silicon Nitride igniter
- Quiet single-speed induced draft blower
- Self-diagnostic control board with constant memory fault code history output to a LED
- All models comply with California 40 ng/J Ultra Low NOx emissions standard
- AHRI Certified
- ETL Listed
Cabinet Features :
- * Designed for multi-position installation. DM96SE: upflow, horizontal left or right
- * Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
- * Easy-to-install top venting with optional side venting
- * Convenient left or right connection for gas and electrical service
- * Cabinet air leakage (QLeak) less than 2%
- * Heavy-gauge steel cabinet with durable finish
- * Fully insulated heat exchanger and blower section
- * Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications
Additional Information
Manufacturer Part NumberDM96SE1205DN
Unit Depth28-7/8 in
Unit Height34-1/2 in
Unit Width24-1/2 in
Efficiency0.96
Family DescriptionSingle-Stage, Multi-Speed ECM Gas Furnace Up to 96% AFUE Input: 40,000¢â‚¬œ120,000 BTU/h
Min. Circuit16.9 A
Model Efficiency0.96
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyDM96SE
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight156 lb
Airflow Rate High Cooling2000 ft‚ ³/min
Motor Speed TypeMulti Speed ECM
Heating Capacity Rated120000 Btu/H
AFUE96 %
High-Fire Input Capacity120000 Btu
High-Fire Output Capacity115320
Blower Motor RPM1200 r/min
