category:
Gas Furnace
depth:
28 in
height:
33-3/8 in
manufacturer:
Goodman
mpn:
DM96TN0403AN
seer:
0.96
subcategory:
40000 BTU
voltage:
1 Ph
weight:
106
width:
14 in
Product Description

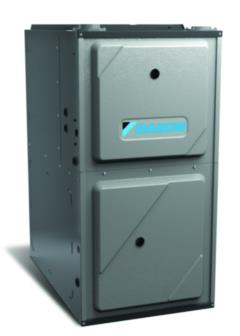

Goodman - DM96TN0403AN Daikin 96% AFUE DM96TN Gas Furnace Multi Speed ECM, Two Stage, Upflow/Horizontal, 40000 Btu BTUH/H,
Specification :
- Heavy-duty stainless-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- Two-stage gas valve provides quiet, economical heating
- Durable Silicon Nitride igniter
- Quiet two-speed induced draft blower
- Self-diagnostic control board with constant memory fault history output to a 3-digit 7 segment LED display and push buttons
- Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
- Multi-speed (9-speed tap) ECM blower motor
- Multiple continuous fan speed options offer quiet air circulation
- Can no longer be installed in California¢â‚¬â„¢s South Coast Air Quality Management District (SCAQMD) on or after October 1,2019
- AHRI Certified
- ETL Listed
Cabinet Features :
- * Designed for multi-position installation: Upflow, horizontal left or right
- * Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
- * Easy-to-install top venting with optional side venting
- * Convenient left or right connection for gas and electrical service
- * Cabinet air leakage (QLeak) = 2%
- * Heavy-gauge steel cabinet with durable finish
- * Fully insulated heat exchanger and blower section
- * Airtight solid bottom or side return with easy-cut tabs for effortless removalin bottom air-inlet applications
Additional Information
Manufacturer Part NumberDM96TN0403AN
Unit Depth28 in
Unit Height33-3/8 in
Unit Width14 in
Efficiency0.96
Family DescriptionTwo-Stage, 9-Speed ECM Upflow/Horizontal Gas Furnace Up to 96% AFUE Input: 30,000¢â‚¬œ120,000 BTU/h
Min. Circuit7.5 A
Model Efficiency0.96
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyDM96TN
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight106 lb
Motor Speed TypeMulti Speed ECM
Airflow Rate High Heating1024 ft‚ ³/min
AFUE96 %
High-Fire Input Capacity40000 Btu
High-Fire Output Capacity38440
