capacity:
46500 Btu
depth:
51 in
height:
42-1/2 in
manufacturer:
Goodman
mpn:
DP14GM4810041
seer:
14 SEER
voltage:
1 Ph
weight:
538
width:
47 in

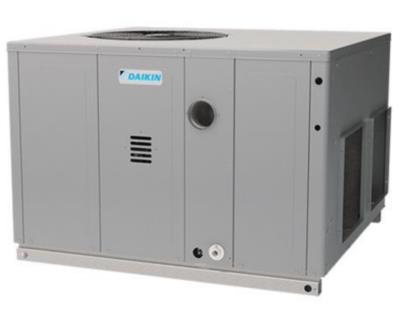

Goodman - DP14GM4810041 Daikin DP14GM Downflow/Horizontal Packaged Gas/Electric/Dual 14 SEER, Single Stage Cooling, Multi Speed ECM, 4 Ton
Specification :
- Heavy-duty stainless-steel heat exchanger
- Energy-efficient compressor
- All-aluminum evaporator coil
- Aluminum tube/aluminum fin coil
- Flowrater expansion device on 2- to 4-ton units TXV expansion device on 5-ton units
- Multi-speed ECM blower motor
- Redundant gas valve with easy conversion to propane
- Power-assisted combustion
- Direct spark ignition system includes a microprocessor-based control for the entire ignition sequence, all blower operation, and all safety circuits complete with self-diagnostics
- All models comply with California Low NOx standards
- This furnace does not comply with the SCAQMD Rule 1111 14 ng/J NOx emission limit and therefore is not eligible for installation in California¢â‚¬â„¢s South Coast Air Quality Management District (SCAQMD). This furnace is not eligible for the SCAQMD Clean Air Furnace Rebate Program: www.CleanAirFurnaceRebate.com. This furnace may be installed in SJVUAPCD until 4/1/2022 provided the date of manufacture is September 30, 2021 or earlier and the emission fees are paid.
- AHRI Certified
- ETL Listed
Cabinet Features :
- * Fully insulated heavy-gauge, zinc-coated steel cabinet with UV-resistant powder-paint finish
- * Horizontal or downflow application
- * Compressor sound blanket
- * Convenient access panels
- * One roof curb fits all units
- * Fully insulated cabinet
- * Bottom, 2¢â‚¬ high base rails for easier handling
- * When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds
Additional Information
Manufacturer Part NumberDP14GM4810041
Compressor StagesSingle Stage
Compressor TypeScroll
Cooling Capacity Rated46500 Btu/H
Unit Depth51 in
Unit Height42-1/2 in
Unit Width47 in
Efficiency14 SEER
Family DescriptionPackaged Gas/Electric Up to 14 SEER / 81% AFUE 2 to 5 Tons
Max. Voltage253 V
Min. Circuit30.5 A
Min. Voltage197 V
Model Efficiency14 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyDP14GM_1
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage4 tons
Unit TypeOutdoor
Unit Weight538 lb
Airflow Rate High Cooling1525 ft‚ ³/min
Indoor Blower FLA5.4 A
Motor Speed TypeSingle Speed EEM
Heating Capacity Rated100000 Btu/H
AFUE0.81 %
High-Fire Input Capacity100000 Btu
High-Fire Output Capacity80000 Btu/h
