depth:
21 in
height:
45 in
manufacturer:
Goodman
mpn:
DV25PTCB14
voltage:
1 Ph
weight:
116
width:
17-1/2 in
Product Description

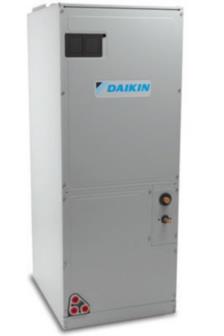

Goodman - DV25PTCB14 DVPTC Ducted Multi-position Air Handler, Variable Speed ECM Motor, 1.5-5 Ton, 17-1/2 in Cabinet with TXV Expansion, Daikin One+ Smart Thermostat compatible
Specification :
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Variable-speed ECM blower motor
- Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment
- Auto configuration of the airflow and tonnage in communicating mode
- All-aluminum evaporator coil
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Fault recall of six most recent faults
- Provides adjustable low CFM for efficient fan-only operation
- Improved humidity and comfort control
- Built-in compatibility with multi-stage heat pump and cooling applications
- AHRI certified
- ETL listed
- Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
- 3 kW ¢â‚¬œ 25 kW electric heater kits
- Horizontal or vertical configuration capabilities
- 21¢â‚¬ depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access
Additional Information
Manufacturer Part NumberDV25PTCB14
Unit Depth21 in
Unit Height45 in
Unit Width17-1/2 in
Family DescriptionMulti-Position, Variable-Speed, ECM-Based Air Handler with Internal TXV ComfortNet Compatible 2 to 5 Tons
Min. Circuit4.9/4.9 A
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/240 V
FamilyDV_PTC
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage2 tons
Unit TypeIndoor
Unit Weight116 lb
Airflow Rate High Cooling1085 ft‚ ³/min
Indoor Blower FLA3.9 A
Motor Speed TypeVariable Speed ECM
