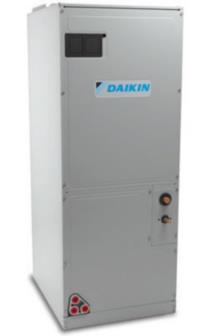

Goodman DV59PTCC14 Daikin DVPTC Air Handler (5 tons)

Product Description

Goodman - DV59PTCC14 DVPTC Ducted Multi-position Air Handler, Variable Speed ECM Motor, 1.5-5 Ton, 21 in Cabinet with TXV Expansion, Daikin One+ Smart Thermostat compatible

Specification :

• Internal factory-installed thermal expansion valves for cooling and heat pump applications
• Variable-speed ECM blower motor
• Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment
• Auto configuration of the airflow and tonnage in communicating mode
• All-aluminum evaporator coil
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• CFM indicator
• Fault recall of six most recent faults
• Provides adjustable low CFM for efficient fan-only operation
• Improved humidity and comfort control
• Built-in compatibility with multi-stage heat pump and cooling applications
• AHRI certified
• ETL listed
• Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
• 3 kW ¢â‚¬œ 25 kW electric heater kits
• Horizontal or vertical configuration capabilities
• 21¢â‚¬  depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce condensation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access
