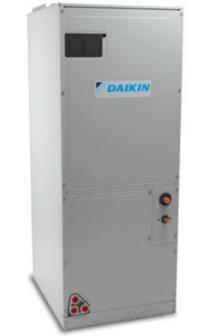

Goodman DV61PTCD14 Daikin DVPTC Air Handler (5 tons)

Goodman DV61PTCD14 Daikin DVPTC Air Handler (5 tons)

Dropship

SKU SKU:kpi027-DV61PTCD14

Regular price $2,637.14 USD
Regular price Sale price $2,637.14 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
depth: 21 in
height: 58 in
manufacturer: Goodman
mpn: DV61PTCD14
voltage: 1 Ph
weight: 167
width: 24-1/2 in

Goodman - DV61PTCD14 DVPTC Ducted Multi-position Air Handler, Variable Speed ECM Motor, 1.5-5 Ton, 24-1/2 in Cabinet with TXV Expansion, Daikin One+ Smart Thermostat compatible

Specification :

  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Variable-speed ECM blower motor
  • Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment
  • Auto configuration of the airflow and tonnage in communicating mode
  • All-aluminum evaporator coil
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Fault recall of six most recent faults
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications
  • AHRI certified
  • ETL listed
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • 3 kW ¢â‚¬œ 25 kW electric heater kits
  • Horizontal or vertical configuration capabilities
  • 21¢â‚¬  depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access

Additional Information

Manufacturer Part NumberDV61PTCD14
Unit Depth21 in
Unit Height58 in
Unit Width24-1/2 in
Family DescriptionMulti-Position, Variable-Speed, ECM-Based Air Handler with Internal TXV ComfortNet Compatible 2 to 5 Tons
Min. Circuit8.6/8.6 A
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyDV_PTC
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage5 tons
Unit TypeIndoor
Unit Weight167 lb
Airflow Rate High Cooling2025 ft‚ ³/min
Indoor Blower FLA6.9 A
Motor Speed TypeVariable Speed ECM
