capacity:
93000 Btu
depth:
35-1/2 in
height:
41-1/2 in
manufacturer:
Goodman
mpn:
DX11TA0903
voltage:
208~230 V / 60 Hz / 3 Ph
weight:
325
width:
35-1/2 in
Product Description

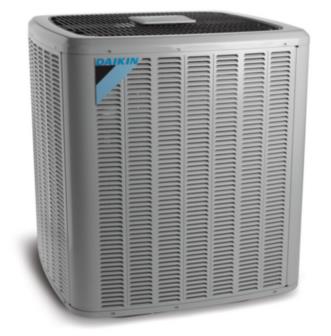

Goodman - DX11TA0903 Daikin DX11 Light Commercial Split Air Conditioner 11.2 EER/13 IEER, Two Stage, 7.5 Ton, Three-Phase
Specification :
- Two-stage energy-efficient compressor
- Quiet operating top discharge
- High-efficiency copper tube / aluminum fin coil
- Brass liquid and suction service valves
- High and Low pressure switches
- Factory installed filter drier
- Complies with ASHRAE 90.1-2016
- AHRI Certified
- ETL Listed
Cabinet Features :
- * Innovative sound control top design
- * Steel louver coil guard protects the coil from damage and adds strength to unit
- * 500-hour salt-spray tested
- * Bottom pan rails elevate unit above slab
- * Heavy-gauge galvanized steel cabinet
- * Attractive Nickel Gray powder paint finish
- * When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available)
Additional Information
Manufacturer Part NumberDX11TA0903
Compressor StagesTwo Stage
Compressor TypeScroll
Cooling Capacity Rated93000 Btu/H
Unit Depth35-1/2 in
Unit Height41-1/2 in
Unit Width35-1/2 in
Max. Voltage253 V
Min. Circuit39.2 A
Min. Voltage197 V
Power Frequency60 Hz
Power Phase3 Ph
Power Voltage208/230 V
FamilyDX11TA_3
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage7.5 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter5/8 in
Suction Valve Outside Diameter1-3/8 in
Unit Weight325 lb
