capacity:
28800 Btu
depth:
29 in
height:
32-1/2 in
manufacturer:
Goodman
mpn:
DX14SA0301
seer:
14 SEER
voltage:
1 Ph
weight:
162
width:
29 in
Product Description

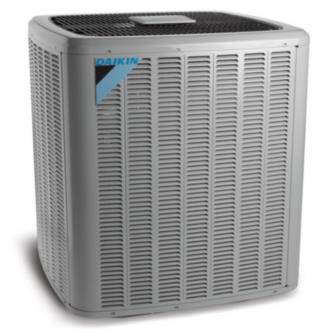

Goodman - DX14SA0301 Daikin DX14SA Split Air Conditioner 14 SEER, Single Stage, 2.5 Ton,
Specification :
- Energy-efficient scroll compressor
- High-density foam compressor sound blanket
- Advanced Copeland CoreSense technology
- Single-Speed PSC condenser fan motor
- Factory-installed filter drier
- Copper tube / enhanced aluminum fin coil
- Sweat connection service valves with easy access to gauge ports
- Contactor with lug connection
- AHRI Certified
- ETL Listed
Cabinet Features :
- * Heavy-gauge galvanized-steel cabinet with grille-style sound control top design
- * Custom Nickel Gray powder-paint finish
- * 500-hour salt-spray tested
- * Wire fan discharge grille
- * Steel louver coil guard
- * Top and side maintenance access
- * Single-panel access to controls with space provided for field-installed accessories
- * When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Additional Information
Manufacturer Part NumberDX14SA0301
Compressor StagesSingle Stage
Compressor TypeScroll
Cooling Capacity Rated28800 Btu/H
Unit Depth29 in
Unit Height32-1/2 in
Unit Width29 in
Efficiency14 SEER
Family DescriptionEnergy-Efficient Split System Air Conditioner Up to 15 SEER 12.5 EER
Max. Voltage253 V
Min. Voltage197 V
Model Efficiency14 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyDX14SA
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage2.5 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter3/8 in
Suction Valve Outside Diameter3/4 in
Unit Weight162 lb
Motor Speed TypeSingle Speed
