capacity:
54000 Btu
depth:
12-5/8 in
height:
39 in
manufacturer:
Goodman
mpn:
DX17VSS601AA
seer:
17 SEER
voltage:
1 Ph
weight:
181
width:
37 in

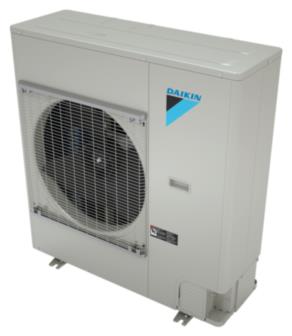

Goodman - DX17VSS601AA Daikin FIT DX17VSS Split Air Conditioner 17 SEER, Inverter, 5 Ton, Daikin One+ Smart Thermostat compatible
Specification :
- Daikin variable-speed swing compressors
- High-density compressor sound blanket
- Daikin control algorithmic logic
- In communicating mode, only two low-voltage wires to outdoor unit required
- Diagnostic indicator lights, seven-segment LED display, and fault code storage
- Daikin Inside intelligence for diagnostics
- Field-selectable boost mode increases compressor speed during unusually high loads
- Quiet DC outdoor fan motor
- Field-installed bi-flow filter drier
- Coil and ambient temperature sensors
- Suction pressure transducer
- Sweat connection service valves with easy access to gauge ports
- AHRI Certified
- ETL Listed
Cabinet Features :
- * Heavy-gauge galvanized steel cabinet with grille-style sound control side design
- * Custom Ivory White power-paint finish
- * 500-hour salt-spray tested
- * Wire fan discharge grille
- * Top and side maintenance access
- * When properly anchored, meets the 2010 Florida Buidling Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available)
Additional Information
Manufacturer Part NumberDX17VSS601AA
Compressor StagesInverter
Compressor TypeSwing
Cooling Capacity Rated54000 Btu/H
Unit Depth12-5/8 in
Unit Height39 in
Unit Width37 in
Efficiency17 SEER
Family DescriptionSide-Discharge, Communicating, Variable-Speed, Inverter Drive Split System Air Conditioner
Max. Voltage253 V
Min. Circuit35.5 A
Min. Voltage197 V
Model Efficiency17 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208-230 V
FamilyDX17VSS
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage5 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter3/8 in
Suction Valve Outside Diameter7/8 in
Unit Weight181 lb
Motor Speed TypeMulti Speed ECM
