capacity:
115000 Btu
depth:
35-1/2 in
height:
41-1/2 in
manufacturer:
Goodman
mpn:
DZ11TA1203
voltage:
208~230 V / 60 Hz / 3 Ph
weight:
375
width:
35-1/2 in
Product Description

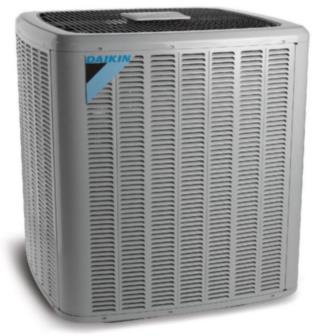

Goodman - DZ11TA1203 Daikin DZ11TA Light Commercial Split Heat Pump 11 EER/13.5 IEER, Two Stage, 10 Ton, Three-Phase
Specification :
- Two-stage energy-efficient compressor with internal pressure relief valve
- High-capacity, steel-cased, bi-flow heat pump filter drier
- Liquid refrigerant return protection
- Check flowrater heating mode expansion device
- Reliable, time-initiated, temperature terminated defrost control
- High and low pressure switches
- Discharge line muffler
- Brass liquid and suction line service valves mounted at a 90 degree angle with sweat connections and service ports
- High-efficiency copper tube / aluminum fin coil
- Complies with ASHRAE 90.1-2016
- AHRI Certified
- ETL Listed
Cabinet Features :
- * Innovative sound control top design
- * Steel louver coil guard protects coil from damage and adds strength to the unit
- * 500-hour salt-spray tested
- * Heavy-gauge, galvanized steel cabinet
- * Attractive Nickel Gray powder-paint finish
- * When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available)
Additional Information
Manufacturer Part NumberDZ11TA1203
Compressor StagesTwo Stage
Compressor TypeScroll
Cooling Capacity Rated115000 Btu/H
Unit Depth35-1/2 in
Unit Height41-1/2 in
Unit Width35-1/2 in
Max. Voltage253 V
Min. Circuit46.4 A
Min. Voltage197 V
Power Frequency60 Hz
Power Phase3 Ph
Power Voltage208/230 V
FamilyDZ11TA_3
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage10 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter5/8 in
Suction Valve Outside Diameter1-3/8 in
Unit Weight375 lb
