capacity:
46000 Btu
category:
Heat Pump
depth:
29 in
height:
34-1/4 in
manufacturer:
Goodman
mpn:
DZ13SA0484
seer:
13 SEER
subcategory:
4 Ton
type:
48000 BTU
voltage:
460 V / 60 Hz / 3 Ph
weight:
234
width:
29 in
Product Description

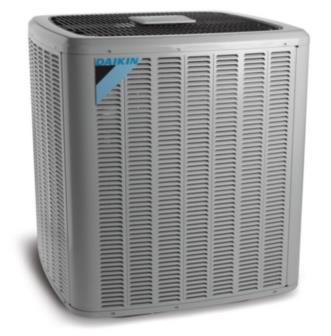

Goodman - DZ13SA0484 Daikin DZ13 Light Commercial Split Heat Pump 11 EER, Single Stage, 4 Ton, Three-Phase
Specification :
- R-410A chlorine-free refrigerant
- Energy-efficient scroll compressor
- Low-pressure switch
- Liquid refrigerant return protection
- Factory-installed, bi-flow liquid-line filter drier
- Service valves with sweat connections and easy-access gauge ports
- Copper tube/enhanced aluminum fin coil
- Reliable time-initiated, temperature-terminated defrost control
- Contactor with lug connection
- Ground lug connection
- Units meet the performance outlined in Table 6.8.1B of ASHRAE Standard 90.1-2010
- AHRI Certified
- ETL Listed
Cabinet Features :
- * Innovative sound control top design
- * Steel louver coil guard
- * Heavy-gauge galvanized-steel cabinet
- * Attractive Nickel Gray powder-paint finish
- * Top and side maintenance access
- * Service ports and controls are accessible while unit is operating
- * When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Additional Information
Manufacturer Part NumberDZ13SA0484
Compressor StagesSingle Stage
Compressor TypeScroll
Cooling Capacity Rated46000 Btu/H
Unit Depth29 in
Unit Height34-1/4 in
Unit Width29 in
Efficiency13 SEER
Family DescriptionEnergy-Efficient Commercial Split System Heat Pump Up to 13 SEER
Max. Voltage506 V
Min. Circuit8.4 A
Min. Voltage414 V
Model Efficiency13 SEER
Power Frequency60 Hz
Power Phase3 Ph
Power Voltage460 V
FamilyDZ13SA
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage4 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter3/8 in
Unit Weight234 lb
Airflow Rate High Cooling1450 ft‚ ³/min
