capacity:
56500 Btu
depth:
35-1/2 in
height:
34-1/2 in
manufacturer:
Goodman
mpn:
DZ14SA0601
seer:
14 SEER
voltage:
1 Ph
weight:
277
width:
35-1/2 in
Product Description

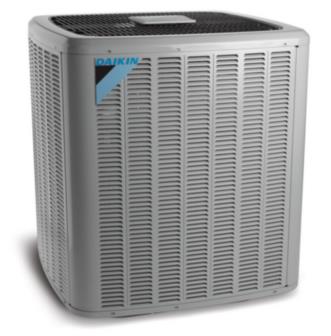

Goodman - DZ14SA0601 Daikin DZ14SA Split Heat Pump 14 SEER 8.5 HSPF, Single Stage, 5 Ton,
Specification :
- Energy-efficient scroll compressor
- Advanced Copeland CoreSense technology
- High-density foam compressor sound blanket
- Time-delay technology to ensure quiet reliable defrost
- Factory-installed bi-flow liquid line filter drier
- Factory-installed suction line accumulator
- Factory-installed compressor crankcase heater
- Factory-installed high capacity muffler
- Single-speed ECM condenser fan motor
- Copper tube/enhanced aluminum fin coil
- High- and low-pressure switches
- AHRI Certified
- ETL Listed
Cabinet Features :
- * Grille-style sound control top design
- * Custom Nickel Gray powder-paint finish
- * 500-hour salt-spray tested
- * Wire fan discharge grille
- * Steel louver coil guard
- * Top and side maintenance access
- * Single-panel access to controls with space provided for field-installed accessories
- * When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Additional Information
Manufacturer Part NumberDZ14SA0601
Compressor StagesSingle Stage
Compressor TypeScroll
Cooling Capacity Rated56500 Btu/H
Unit Depth35-1/2 in
Unit Height34-1/2 in
Unit Width35-1/2 in
Efficiency14 SEER
Family Description1.0 Ton Split System Heat Pump Up to 15 SEER 9.0 HSPF
Max. Voltage253 V
Min. Voltage197 V
Model Efficiency14 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyDZ14SA_1
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage5 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter3/8 in
Suction Valve Outside Diameter7/8 in
Unit Weight277 lb
