capacity:
28400 Btu
depth:
13-3/4 in
height:
27-3/8 in
manufacturer:
Goodman
mpn:
DZ17VSA301AA
seer:
17 SEER
voltage:
1 Ph
weight:
125
width:
36-5/8 in
Product Description

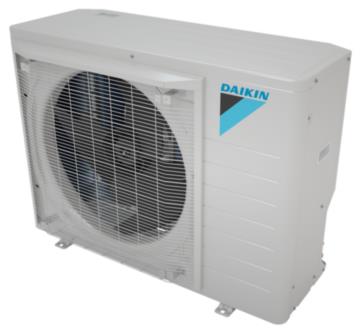

Goodman - DZ17VSA301AA Daikin DZ17VSA Split Heat Pump 17 SEER 9.6 HSPF, Inverter, 2.5 Ton, Daikin One+ Smart Thermostat compatible
Specification :
- Daikin variable-speed swing compressors
- High-density compressor sound blanket
- Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment
- Daikin control algorithmic logic
- Intelligent Defrost Mode
- In communicating mode, only two low-voltage wires to outdoor unit required
- Diagnostic indicator lights, seven-segment LED display, and fault code storage
- Daikin Inside intelligence for diagnostics
- Field-selectable boost mode increases compressor speed during unusually high loads
- Quiet DC outdoor fan motor
- Field-installed bi-flow filter drier
- Coil and ambient temperature sensors
- Suction pressure transducer
- Sweat connection service valves with easy access to gauge ports
- Advanced water-shedding drain pan
- Hot start technology
- AHRI Certified
- ETL Listed
Cabinet Features :
- * Heavy-gauge galvanized steel cabinet with grille-style sound control side design
- * Custom Ivory White power-paint finish
- * 500-hour salt-spray tested
- * Wire fan discharge grille
- * Top and side maintenance access
- * When properly anchored, meets the 2010 Florida Buidling Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available)
Additional Information
Manufacturer Part NumberDZ17VSA301AA
Compressor StagesInverter
Compressor TypeSwing
Cooling Capacity Rated28400 Btu/H
Unit Depth13-3/4 in
Unit Height27-3/8 in
Unit Width36-5/8 in
Efficiency17 SEER
Family DescriptionDaikin Fit High-Efficiency,Communicating,Inverter Drive Saide Discharge Split System Heat Pump Up to 18 SEER 10.0 HSPF
Max. Voltage253 V
Min. Circuit22.7 A
Min. Voltage197 V
Model Efficiency17 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208-230 V
FamilyDZ17VSA
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage2.5 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter3/8 in
Suction Valve Outside Diameter7/8 in
Unit Weight125 lb
Heating Capacity Rated28400 Btu/H
