capacity:
23400 Btu
depth:
35-1/2 in
height:
38-1/4 in
manufacturer:
Goodman
mpn:
DZ20VC0241
seer:
20 SEER
voltage:
1 Ph
weight:
217
width:
35-1/2 in

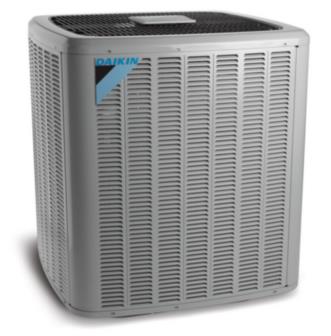

Goodman - DZ20VC0241 Daikin DZ20VC Split Heat Pump 20 SEER 10 HSPF, Inverter, 2 Ton, Daikin One+ Smart Thermostat compatible
Specification :
- Daikin variable-speed swing compressor
- High-density foam compressor sound blanket
- Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment
- Daikin control algorithmic logic
- In communicating mode, only two low-voltage wires to outdoor unit required
- Diagnostic indicator lights, seven-segment LED display, and fault code storage
- Daikin Inside intelligence for diagnostics
- Field-selectable boost mode increases compressor speed during unusually high loads
- Quiet ECM outdoor fan motor
- Fully charged for 15 ft. of tubing length
- Field-installed bi-flow filter drier
- Coil and ambient temperature sensors
- Suction pressure transducer
- Sweat connection service valves with easy access to gauge ports
- AHRI Certified
- ETL Listed
Cabinet Features :
- * Grille-style sound control top design
- * Custom Nickel Gray powder-paint finish
- * 500-hour salt-spray tested
- * Wire fan discharge grille
- * Steel louver coil guard
- * Heavy-gauge galvanized-steel cabinet
- * Top and side maintenance access
- * Single-panel access to controls with space provided for field-installed accessories
- * When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Additional Information
Manufacturer Part NumberDZ20VC0241
Compressor StagesInverter
Compressor TypeSwing
Cooling Capacity Rated23400 Btu/H
Unit Depth35-1/2 in
Unit Height38-1/4 in
Unit Width35-1/2 in
Efficiency20 SEER
Family DescriptionHigh-Efficiency, Communicating, Split System Heat Pump Up to 21 SEER
Max. Voltage253 V
Min. Circuit15.2 A
Min. Voltage197 V
Model Efficiency20 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyDZ20VC
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage2 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter3/8 in
Suction Valve Outside Diameter3/4 in
Unit Weight217 lb
Airflow Rate High Cooling720 ft‚ ³/min
Indoor Blower FLA2.5 A
Motor Speed TypeVariable Speed ECM
Heating Capacity Rated23600 Btu/H
Airflow Rate High Heating720 ft‚ ³/min
