depth:
28 in
height:
33.5 in
manufacturer:
Goodman
mpn:
GCEC800603AX
seer:
0.8
voltage:
1 Ph
weight:
107
width:
14 in
Product Description

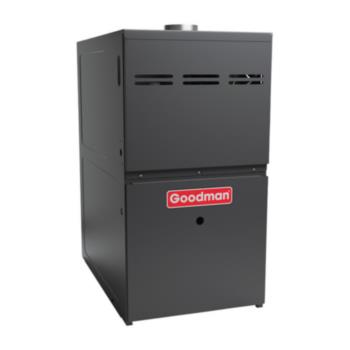

Goodman - GCEC800603AX Goodman 80% AFUE GCEC80 Gas Furnace Multi Speed ECM, Two Stage Convertible, Downflow/Horizontal, 60,000 BTUH/H, Low NOx
Specification :
- Heavy-duty aluminized-steel tubular heat exchanger
- "Silicon Nitride igniter"
- Color-coded low-voltage terminals
- Two-Stage gas valve
- Multi-speed ECM blower motor with continuous fan speed
- Fault code LED Output
- Two-stage gas valve
- Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
Additional Information
- 1. Multi-position installation: Downflow, horizontal left or right
- 2. Convenient left or right connection for gas and electrical service
- 3. Cabinet air leakage (Qleak) less than or equal to 2%
- 4. Fully insulated heat exchanger and blower section
- 5. Bottom or side return air applications
- 6. Heavy-gage steel cabinet with durable finish
Unit Depth28 in
Unit Height33.5 in
Unit Width14 in
Efficiency0.8
Family DescriptionTwo-Stage Multi-Speed ECM Gas Furnace up to 80% AFUE
Min. Circuit8.7 A
Model Efficiency0.8
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyGCEC80
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight107 lb
