category:
Gas Furnace
country_of_origin:
US
depth:
28.75 in
height:
34.5 in
manufacturer:
Goodman
mpn:
GCES960403BN
seer:
0.96
subcategory:
40000 BTU
voltage:
1 Ph
weight:
113
width:
17-1/2 in
Product Description

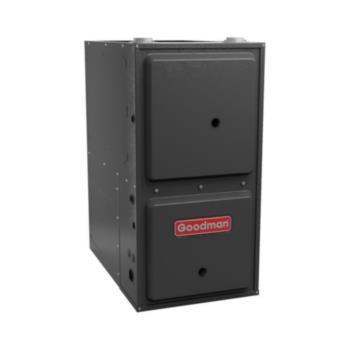

Goodman - GCES960403BN Goodman 96% AFUE GCES96 Gas Furnace Multi Speed ECM, Single Stage, Downflow/Horizontal, 40000 BTUH/H, Low NOx
Specification :
- Heavy-duty aluminized-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- Single-stage gas valve
- Durable Silicon Nitride igniter
- Quiet single-speed induced draft blower
- Self-diagnostic control board with constant memory fault code history output to a LED
- All models comply with California 40 ng/J Low NOx emissions standard
- Can no longer be installed in California¢â‚¬â„¢s South Coast Air Quality Management District (SCAQMD) on or after October 1, 2019
- AHRI Certified
- ETL Listed
Cabinet Features :
- * Designed for multi-position installation ¢â‚¬ GMES96: upflow, horizontal left or right GCES96: downflow, horizontal left or right
- * Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
- * Easy-to-install top venting with optional side venting ¢â‚¬ GMES96/upflow models only
- * Convenient left or right connection for gas and electrical service
- * Cabinet air leakage (QLeak) ¢° ¤ 2%
- * Heavy-gauge steel cabinet with durable finish
- * Fully insulated heat exchanger and blower section
- * Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications
Additional Information
Manufacturer Part NumberGCES960403BN
Unit Depth28.75 in
Unit Height34.5 in
Unit Width17-1/2 in
Efficiency0.96
Family DescriptionSingle Stage Multi-Speed ECM Downflow Gas Furnace Up to 96% AFUE
Min. Circuit10.3 A
Model Efficiency0.96
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyGCES96
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight113 lb
Motor Speed TypeMulti Speed ECM
Airflow Rate High Heating890 ft‚ ³/min
AFUE96 %
High-Fire Input Capacity40000 Btu
High-Fire Output Capacity38440
Blower Motor RPM1200 r/min
NOX Burner TypeLow NOx
