category:
Gas Furnace
custom_label_4:
Greater than $100
depth:
29 in
height:
34-1/2 in
manufacturer:
Goodman
mpn:
GCSS920603BN
seer:
0.92
subcategory:
60000 BTU
type:
92% AFUE
voltage:
1 Ph
width:
17-1/2 in

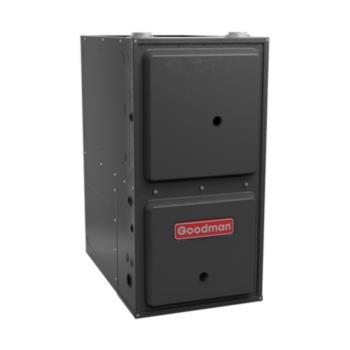

Goodman - GCSS920603BN Goodman 92% AFUE GCSS92 Gas Furnace PSC, Single Stage, Downflow/Horizontal, 60000 BTUH/H, Low NOx
Specification :
- 1. Heavy-duty aluminized-steel tubular heat exchanger
- 2. Stainless-steel sloped secondary heat exchanger
- 3. Silicon Nitride igniter
- 4. All models comply with California 40 ng/J
- 5. Single-Stage gas Valve
- 6. Single-speed inducer draft blower
Cabinet Features :
- 1. Multi-position installation: downflow, horizontal left or right
- 2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- 3. Easy to install top venting with optional side vent
- 4. Convenient left or right connection for gas and electrical service
- 5. Cabinet air leakage (Qleak) less than or equal to 2%
- 6. Foil faced insulated heat exchanger section
- 7. Bottom or side return air applications
- 8. Heavy-gage steel cabinet with durable finish
Additional Information
Manufacturer Part NumberGCSS920603BN
Unit Depth29 in
Unit Height34-1/2 in
Unit Width17-1/2 in
Efficiency0.92
Family DescriptionSingle-Stage Multi-Speed Gas Furnace Up to 92% AFUE
Min. Circuit9.6 A
Model Efficiency0.92
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyGCSS92
Prop65 Label RequiredTRUE
Unit TypeIndoor
Motor Speed TypePSC
AFUE92 %
High-Fire Input Capacity60000 Btu
High-Fire Output Capacity55200
NOX Burner TypeLow NOx
