category:
Gas Furnace
depth:
29 in
height:
34-1/2 in
manufacturer:
Goodman
mpn:
GCSS920804CN
seer:
0.92
subcategory:
80000 BTU
type:
96% AFUE
voltage:
1 Ph
width:
21 in
Product Description

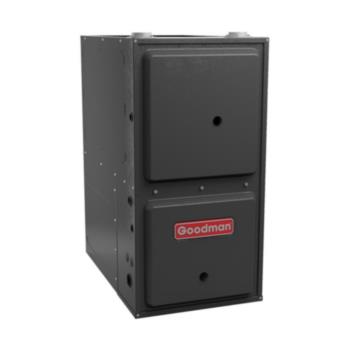

Goodman - GCSS920804CN Goodman 92% AFUE GCSS92 Gas Furnace PSC, Single Stage, Downflow/Horizontal, 80000 BTUH/H, Low NOx
Specification :
- 1. Heavy-duty aluminized-steel tubular heat exchanger
- 2. Stainless-steel sloped secondary heat exchanger
- 3. Silicon Nitride igniter
- 4. All models comply with California 40 ng/J
- 5. Single-Stage gas Valve
- 6. Single-speed inducer draft blower
Cabinet Features :
- 1. Multi-position installation: downflow, horizontal left or right
- 2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- 3. Easy to install top venting with optional side vent
- 4. Convenient left or right connection for gas and electrical service
- 5. Cabinet air leakage (Qleak) less than or equal to 2%
- 6. Foil faced insulated heat exchanger section
- 7. Bottom or side return air applications
- 8. Heavy-gage steel cabinet with durable finish
Additional Information
Manufacturer Part NumberGCSS920804CN
Unit Depth29 in
Unit Height34-1/2 in
Unit Width21 in
Efficiency0.92
Family DescriptionSingle-Stage Multi-Speed Gas Furnace Up to 92% AFUE
Min. Circuit11.7 A
Model Efficiency0.92
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyGCSS92
Prop65 Label RequiredTRUE
Unit TypeIndoor
Motor Speed TypePSC
AFUE92 %
High-Fire Input Capacity80000 Btu
High-Fire Output Capacity73600
NOX Burner TypeLow NOx
