availability:
In stock
category:
HVAC Supplies
custom_label_0:
Goodman Amana Sale
custom_label_2:
in-stock
custom_label_6:
Goodman Amana Sale
depth:
28.75 in
height:
34-1/2 in
install_guide:
["https://s3.amazonaws.com/s3.supplyhouse.com/product_files/Goodman-GCVC961005CN-Install%3D.pdf"]
manual:
https://s3.amazonaws.com/s3.supplyhouse.com/product_files/Goodman-GCVC961005CN-Technical.pdf
manufacturer:
Goodman
mpn:
GCVC961005CN
seer:
0.96
subcategory:
HVAC Equipment
technical_brochure:
https://s3.amazonaws.com/s3.supplyhouse.com/product_files/Goodman-GCVC961005CN-Brochure.pdf
type:
Gas Furnaces
user_guide:
["https://www.supplyhouse.com/Goodman-GCVC961005CN-100000-BTU-96-Efficiency-Two-Stage-Downflow-Horizontal-Variable-Speed-Gas-Furnace"]
voltage:
1 Ph
warranty_sheet:
["https://s3.amazonaws.com/s3.supplyhouse.com/product_files/Goodman-GCVC961005CN-Warranty.pdf"]
weight:
132
width:
21 in
Warrenty Sheet Product Description

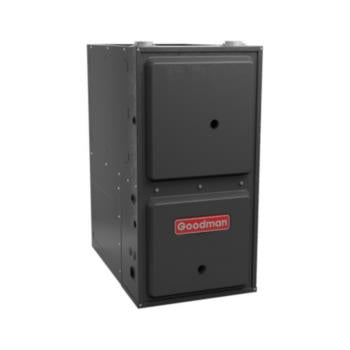

Goodman - GCVC961005CN The GCVC96 furnace uses a pair of steel heat exchangers to convert 96% of the energy used into comfort, Goodman's highest mark for a two-stage furnace. It is equipped with an advanced variable-speed blower motor, which scales circulation to the specific demands of your application in real-time. The GCVC961005CN was designed with multiple options for the unit's gas, electric, and venting connections and orientation, ensuring a painless and quick installation. It even features a self-diagnosing control board that makes maintenance a breeze. If you're looking for consistent comfort and incredible efficiency from a two-stage furnace, it's tough to beat Goodman's GCVC96.
Specification :
- 1. Heavy-duty aluminized-steel tubular heat exchanger
- 2. Efficient and quiet variable-speed Blower
- 3. Integrated communicating ComfortBridge technology
- 4. Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
- 5. Stainless-steel sloped secondary heat exchanger
- 6. Silicon Nitride igniter
- 7. Dual 7-segment display
- 8. Color-coded low-voltage terminal
- 9. Two-Stage gas valve
- 10. All models comply with California 40 ng/J
- 11. AHRI Certified, ETL Listed
- 12. Energy Star
- 13. Two-stage gas valve
- 14. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
Additional Information
- 1. Multi-position installation: downflow, horizontal left or right
- 2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- 3. Easy to install top venting with optional side vent
- 4. Convenient left or right connection for gas and electrical service
- 5. Cabinet air leakage (Qleak) less than or equal to 2%
- 6. Fully insulated heat exchanger and blower section
- 7. Bottom or side return air applications
- 8. Heavy-gage steel cabinet with durable
Unit Depth28.75 in
Unit Height34-1/2 in
Unit Width21 in
Efficiency0.96
Family DescriptionComfortBridge-Compatible Two-Stage, Variable-Speed ECM Gas Furnace Up to 96% AFUE
Min. Circuit14.4 A
Model Efficiency0.96
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyGCVC96
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight132 lb
