depth:
28 in
height:
33-3/8 in
manufacturer:
Goodman
mpn:
GM9C800805CN
seer:
0.8
voltage:
1 Ph
weight:
129
width:
21 in
Product Description

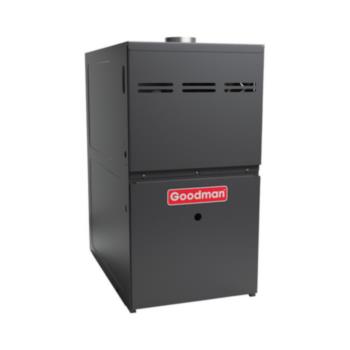

Goodman - GM9C800805CN Goodman 80% AFUE GM9C80 Gas Furnace Multi Speed ECM, Two Stage, Upflow/Horizontal, 80000 Btu BTUH/H,
Specification :
- Heavy-duty aluminized-steel tubular heat exchanger
- "Silicon Nitride igniter"
- Color-coded low-voltage terminals
- Two-Stage gas valve
- Multi-speed ECM blower motor with continuous fan speed
- Fault code LED Output
- Two-stage gas valve
- Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
Additional Information
Unit Depth28 in
Unit Height33-3/8 in
Unit Width21 in
Efficiency0.8
Family DescriptionTwo-Stage Multi-Speed ECM Gas Furnace up to 80% AFUE
Min. Circuit15.32 A
Model Efficiency0.8
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyGM9C80
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight129 lb
