depth:
28 in
height:
33-3/8 in
manufacturer:
Goodman
mpn:
GM9S960804CN
seer:
0.96
voltage:
1 Ph
weight:
116
width:
21 in
Product Description

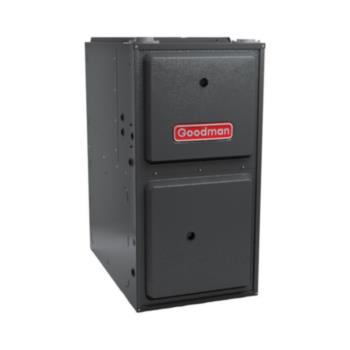

Goodman - GM9S960804CN Goodman 96% AFUE GM9S96 Gas Furnace Nine Speed ECM, Single Stage, Upflow/Horizontal, 80000 Btu BTUH/H,
Specification :
- 1. Heavy-duty aluminized-steel tubular heat exchanger
- 2. Stainless-steel sloped secondary heat exchanger
- 3. Silicon Nitride igniter
- 4. Color-coded low-voltage terminals
- 5. Multi-speed ECM blower motor with continuous fan speed
- 6. Fault code LED Output
- 7. AHRI Certified - ETL Listed
- 8. Energy Star
- 9. Single-Stage gas Valve
- 10. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
- 11. Low constant fan speed circulates air throughout the home
- 12. High static
- 13. All models comply with California Ultra-Low N0x 14 ng/J
Additional Information
Unit Depth28 in
Unit Height33-3/8 in
Unit Width21 in
Efficiency0.96
Family DescriptionSingle-Stage Multi-Speed ECM Gas Furnace Up to 96% AFUE
Min. Circuit14.1 A
Model Efficiency0.96
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyGM9S96
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight116 lb
