depth:
29 in
height:
34-1/2 in
manufacturer:
Goodman
mpn:
GMEC961005CN
seer:
0.96
voltage:
1 Ph
width:
21 in
Product Description

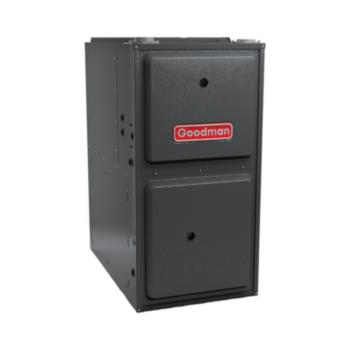

Goodman - GMEC961005CN Goodman 96% AFUE GMEC96 Gas Furnace Multi Speed ECM, Two Stage, Upflow/Horizontal, 100000 BTUH/H, Low NOx
Specification :
- 1. Heavy-duty aluminized-steel tubular heat exchanger
- 2. Stainless-steel sloped secondary heat exchanger
- 3. Silicon Nitride igniter
- 4. Color-coded low-voltage terminals
- 5. Two-Stage gas valve
- 6. Multi-speed ECM blower motor with continuous fan speed
- 7. All models comply with California 40 ng/J
- 8. Fault code LED Output
- 9. AHRI Certified - ETL Listed
- 10. Energy Star
- 11. Two-stage gas valve
- 12. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
Additional Information
- 1. Multi-position installation: upflow, horizontal left or right
- 2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- 3. Easy to install top venting with optional side vent
- 4. Convenient left or right connection for gas and electrical service
- 5. Cabinet air leakage (Qleak) less than or equal to 2%
- 6. Fully insulated heat exchanger and blower section
- 7. Bottom or side return air applications
- 8. Heavy-gage steel cabinet with durable finish
Unit Depth29 in
Unit Height34-1/2 in
Unit Width21 in
Efficiency0.96
Family DescriptionTwo-Stage, Multi-Speed ECM Gas Furnace Up to 96% AFUE
Min. Circuit13.3 A
Model Efficiency0.96
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyGMEC96
Prop65 Label RequiredTRUE
Unit TypeIndoor
