category:
Gas Furnace
country_of_origin:
US
depth:
28 in
height:
33.5 in
manufacturer:
Goodman
mpn:
GMES800403AN
seer:
0.8
subcategory:
40000 BTU
voltage:
1 Ph
weight:
86
width:
14 in
Product Description

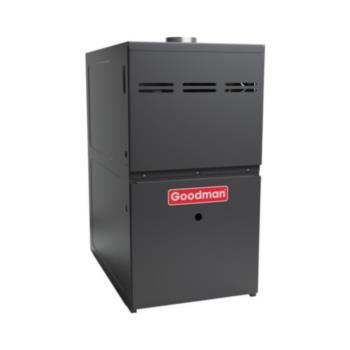

Goodman - GMES800403AN Goodman 80% AFUE GMES80 Gas Furnace Multi Speed ECM, Single Stage, Upflow/Horizontal, 40,000 BTUH/H,
Specification :
- 1. Heavy-duty aluminized-steel tubular heat exchanger
- 2. "Silicon Nitride igniter"
- 3. Color-coded low-voltage terminals
- 4. Multi-speed ECM blower motor with continuous fan speed
- 5. Fault code LED Output
- 6. Single-Stage gas Valve
- 7. Single-speed inducer draft blower
Cabinet Features :
- 1. Multi-position installation: upflow, horizontal left or right
- 2. Convenient left or right connection for gas and electrical service
- 3. Cabinet air leakage (Qleak) less than or equal to 2%
- 4. Foil faced insulated heat exchanger section
- 5. Bottom or side return air applications
- 5. Bottom or side return air applications
Additional Information
Manufacturer Part NumberGMES800403AN
Unit Depth28 in
Unit Height33.5 in
Unit Width14 in
Efficiency0.8
Family DescriptionSingle-Stage Multi-Speed ECM Gas Furnace 80% AFUE
Min. Circuit15.0 A
Model Efficiency0.8
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyGMES80
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight86 lb
Motor Speed TypeMulti Speed ECM
Airflow Rate High Heating1138 ft‚ ³/min
AFUE80 %
High-Fire Input Capacity40000 Btu
High-Fire Output Capacity32,000
Blower Motor RPM1200 r/min
