depth:
29 in
height:
34-1/2 in
manufacturer:
Goodman
mpn:
GMES920603BN
seer:
0.92
voltage:
1 Ph
weight:
114
width:
17-1/2 in
Product Description

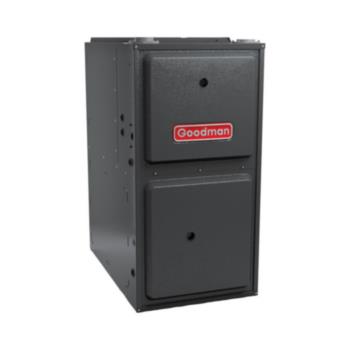

Goodman - GMES920603BN Goodman 92% AFUE GMES92 Gas Furnace Multi Speed ECM, Single Stage, Upflow/Horizontal, 60000 BTUH/H, Low NOx
Specification :
- Heavy-duty aluminized-steel tubular heat exchangerStainless-steel sloped secondary heat exchanger"Silicon Nitride igniter"Color-coded low-voltage terminals Multi-speed ECM blower motor with continuous fan speedAll models comply with California 40 ng/J Fault code LED OutputSingle-Stage gas ValveSingle-speed inducer draft blower
Additional Information
- 1. Multi-position installation: upflow, horizontal left or right2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)3. Easy to install top venting with optional side vent4. Convenient left or right connection for gas and electrical service5. Cabinet air leakage (Qleak) less than or equal to 2%6. Foil faced insulated heat exchanger section7. Bottom or side return air applications8. Heavy-gage steel cabinet with durable finish
Unit Depth29 in
Unit Height34-1/2 in
Unit Width17-1/2 in
Efficiency0.92
Family DescriptionSingle-Stage Multi-Speed ECM Gas Furnace Up to 92% AFUE
Min. Circuit10.3 A
Model Efficiency0.92
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyGMES92
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight114 lb
