category:
Gas Furnace
custom_label_4:
Greater than $100
depth:
28-1/2 in
height:
33-1/2 in
manufacturer:
Goodman
mpn:
GMS80604BX
seer:
0.8
subcategory:
60000 BTU
type:
80% AFUE
voltage:
1 Ph
width:
17-1/2 in

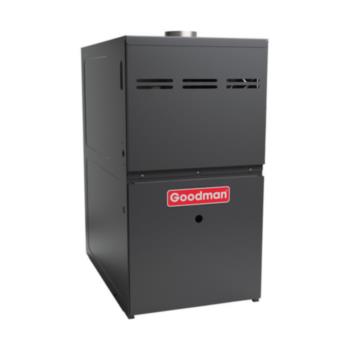

Goodman - GMS80604BX Goodman 80% AFUE GMS8 Gas Furnace PSC, Single Stage, Upflow/Horizontal, 60,000 BTUH/H, Low NOx
Specification :
- 1. Heavy-duty aluminized-steel tubular heat exchanger
- 2. Silicon Nitride igniter
- 3. Single-Stage gas Valve
- 4. Single-speed inducer draft blower
Cabinet Features :
- 1. Multi-position installation: upflow, horizontal left or right
- 2. Convenient left or right connection for gas and electrical service
- 3. Cabinet air leakage (Qleak) less than or equal to 2%
- 4. Foil faced insulated heat exchanger section
- 5. Bottom or side return air applications
- 6. Heavy-gage steel cabinet with durable finish
Additional Information
Manufacturer Part NumberGMS80604BX
Unit Depth28-1/2 in
Unit Height33-1/2 in
Unit Width17-1/2 in
Efficiency0.8
Family DescriptionMulti-Position, Multi-Speed Gas Furnaces 80% AFU
Min. Circuit8.8 A
Model Efficiency0.8
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyGMS8
Prop65 Label RequiredTRUE
Unit TypeIndoor
Motor Speed TypePSC
AFUE80 %
High-Fire Input Capacity60000 Btu
High-Fire Output Capacity48,000
NOX Burner TypeLow NOx
