category:
Gas Furnace
depth:
29 in
height:
34-1/2 in
manufacturer:
Goodman
mpn:
GMSS960403AN
seer:
0.96
subcategory:
40000 BTU
voltage:
1 Ph
weight:
106
width:
14 in

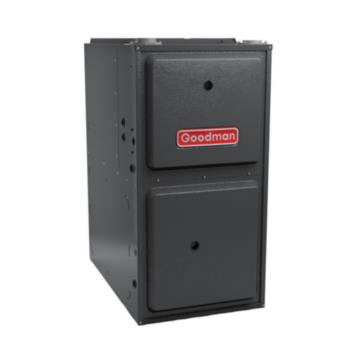

Goodman - GMSS960403AN Goodman 96% AFUE GMSS96 Gas Furnace PSC, Single Stage, Upflow/Horizontal, 40000 BTUH/H,
Specification :
- 1. Heavy-duty aluminized-steel tubular heat exchanger
- 2. Stainless-steel sloped secondary heat exchanger
- 3. Silicon Nitride igniter
- 4. All models comply with California 40 ng/J
- 5. Single-Stage gas Valve
- 6. Single-speed inducer draft blower
Cabinet Features :
- 1. Multi-position installation: upflow, horizontal left or right
- 2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- 3. Easy to install top venting with optional side vent
- 4. Convenient left or right connection for gas and electrical service
- 5. Cabinet air leakage (Qleak) less than or equal to 2%
- 6. Fully insulated heat exchanger and blower section
- 7. Bottom or side return air applications
- 8. Heavy-gage steel cabinet with durable finish
Additional Information
Manufacturer Part NumberGMSS960403AN
Unit Depth29 in
Unit Height34-1/2 in
Unit Width14 in
Efficiency0.96
Family DescriptionSingle-Stage, Multi-Speed Gas Furnace Up to 96% AFUE
Min. Circuit9.3 A
Model Efficiency0.96
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage115 V
FamilyGMSS96
Prop65 Label RequiredTRUE
Unit TypeIndoor
Unit Weight106 lb
Motor Speed TypePSC
Airflow Rate High Heating1118 ft‚ ³/min
AFUE96 %
High-Fire Input Capacity40000 Btu
High-Fire Output Capacity38440
Blower Motor RPM1075 r/min
