depth:
34 in
height:
30 in
manufacturer:
Goodman
mpn:
GPC1536H41
seer:
15 SEER
voltage:
1 Ph
weight:
315
width:
66-1/2 in
Product Description

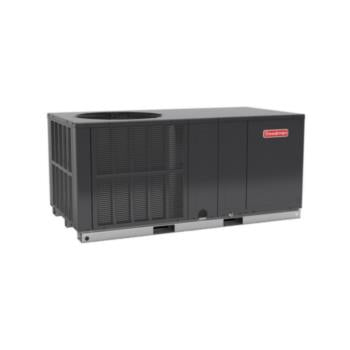

Goodman - GPC1536H41 Goodman GPC15H Horizontal Packaged Air Conditioner 15 SEER, Single Stage, Multi Speed ECM, 3 Ton
Specification :
- Energy-efficient compressor with internal relief valve
- Multi-speed ECM indoor blower motor
- Quiet horizontal discharge
- Copper tube / aluminum fin condenser coil
- Totally enclosed, permanently lubricated condenser fan motor
- Fully charged system
- 5 kW to 20 kW electric heat kit available as a field-installed option
- AHRI Certified
- ETL listed
Cabinet Features :
- Heavy-gauge galvanized-steel cabinet with attractive Architectural Gray powder-paint finish
- Fully insulated blower compartment has convenient access panels
- Louvered condenser coil protection
- One footprint
- three heights
- Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
- Aluminum foil-facing internal insulation reinforced with fiberglass scrim
Additional Information
Compressor StagesSingle Stage
Compressor TypeScroll
Unit Depth34 in
Unit Height30 in
Unit Width66-1/2 in
Efficiency15 SEER
Family DescriptionPackaged Air Conditioner Up to 15 SEER 2 to 5 Tons
Max. Voltage253 V
Min. Circuit22.7 A
Min. Voltage197 V
Model Efficiency15 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyGPC15_H
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage3 tons
Unit TypeOutdoor
Unit Weight315 lb
