depth:
34 in
height:
38-3/4 in
manufacturer:
Goodman
mpn:
GPH1660H41
seer:
16 SEER
voltage:
1 Ph
weight:
405
width:
66-1/2 in
Product Description

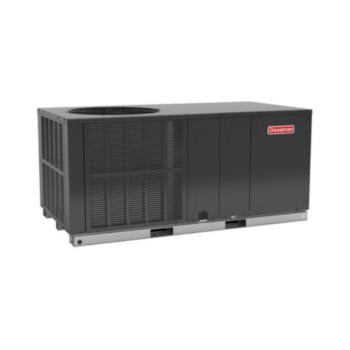

Goodman - GPH1660H41 Goodman GPH16H Horizontal Packaged Heat Pump 16 SEER, Two Stage Cooling, Multi Speed ECM, 5 Ton
Specification :
- Energy-efficient compressor
- Multi-speed ECM indoor blower motor
- All-aluminum evaporator coil
- Copper tube/aluminum fin coil
- Totally enclosed, permanently lubricated condenser fan motor
- Fully charged system
- Quiet horizontal discharge
- Electric heat kit available as a field-installed option
- AHRI Certified
- ETL Listed
Cabinet Features :
- Heavy-gauge galvanized-steel cabinet with attractive Architectural Gray powder-paint finish
- Louvered condenser coil protection
- Aluminum foil-facing internal insulation
- Reinforced with fiberglass scrim
- Fully insulated blower compartment with convenient access panels
- Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
- One footprint for all tonnages
Additional Information
Compressor StagesTwo Stage
Compressor TypeScroll
Unit Depth34 in
Unit Height38-3/4 in
Unit Width66-1/2 in
Efficiency16 SEER
Family DescriptionPackaged Heat Pump 2 to 5 Tons Up to 16 SEER
Max. Voltage253 V
Min. Circuit40.4 A
Min. Voltage197 V
Model Efficiency16 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyGPH16_H
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage5 tons
Unit TypeOutdoor
Unit Weight405 lb
