depth:
35-3/4 in
height:
40 in
manufacturer:
Goodman
mpn:
GSX140601
seer:
14 SEER
voltage:
1 Ph
weight:
260
width:
35-3/4 in
Product Description

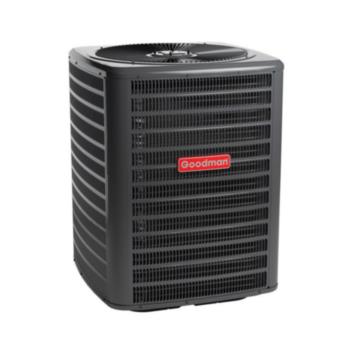

Goodman - GSX140601 Goodman GSX14 Split Air Conditioner 14 SEER, Single Stage, 5 Ton,
Specification :
- 1. Energy-efficient compressor
- 2. Single-speed PSC condenser fan motor
- 3. Factory-installed filter drier
- 4. Fully charged for fifteen feet of tubing length
- 5. Contactor with lug connection
- 6. AHRI Certified - ETL Listed
- 7. Ground lug connection
- 8. Copper tube enhanced aluminum fin coil
Cabinet Features :
- 1. Heavy-gauge galvanized steel cabinet and louvered coil guards
- 2. Service valves with sweat connections and easy-access gauge ports
- 3. Engineered sound control top design
- 4. Baked-on powder-paint finish with 500-hour salt-spray approval
- 5. Single-panel access to controls with space for field-installed accessories
- 6. Service port and controls are accessible while unit is operating
- 7. Compact footprint
- 8. Rust-resistant screws
- 9. When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Additional Information
Compressor StagesSingle Stage
Compressor TypeScroll
Unit Depth35-3/4 in
Unit Height40 in
Unit Width35-3/4 in
Efficiency14 SEER
Family DescriptionEnergy-Efficient Split System Air Conditioner Up to 15 SEER 12.5 EER
Max. Voltage253 V
Min. Circuit32.6 A
Min. Voltage197 V
Model Efficiency14 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyGSX14
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage5 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter3/8 in
Suction Valve Outside Diameter7/8 in
Unit Weight260 lb
