capacity:
29000 Btu
depth:
29-1/4 in
height:
36-1/4 in
manufacturer:
Goodman
mpn:
GSX16S301
seer:
16 SEER
voltage:
1 Ph
weight:
149
width:
29-1/4 in
Product Description

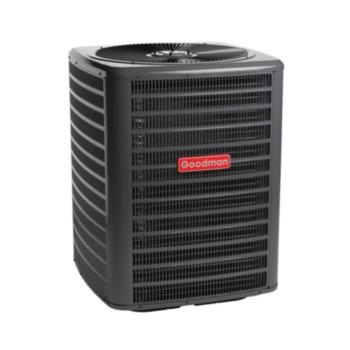

Goodman - GSX16S301 Goodman GSX16 Split Air Conditioner 16 SEER, Single Stage, 2.5 Ton,
Specification :
- 1. High-efficiency compressor
- 2. Single-speed PSC condenser fan motor
- 3. Factory-installed filter drier
- 4. Fully charged for fifteen feet of tubing length
- 5. Contactor with lug connection
- 6. AHRI Certified - ETL Listed
- 7. Ground lug connection
- 8. Copper tube enhanced aluminum fin coil
Cabinet Features :
- 1. Heavy-gauge galvanized steel cabinet and louvered coil guards
- 2. Service valves with sweat connections and easy-access gauge ports
- 3. Engineered sound control top design
- 4. Baked-on powder-paint finish with 500-hour salt-spray approval
- 5. Single-panel access to controls with space for field-installed accessories
- 6. Service port and controls are accessible while unit is operating
- 7. Compact footprint
- 8. Rust-resistant screws
- 9. When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Additional Information
Compressor StagesSingle Stage
Compressor TypeScroll
Cooling Capacity Rated29000 Btu/H
Unit Depth29-1/4 in
Unit Height36-1/4 in
Unit Width29-1/4 in
Efficiency16 SEER
Family DescriptionHigh-Efficiency Split System Air Conditioner Up to 16 SEER 13 EER
Max. Voltage253 V
Min. Circuit17.0 A
Min. Voltage197 V
Model Efficiency16 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyGSX16
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage2.5 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter3/8 in
Suction Valve Outside Diameter7/8 in
Unit Weight149 lb
