Goodman

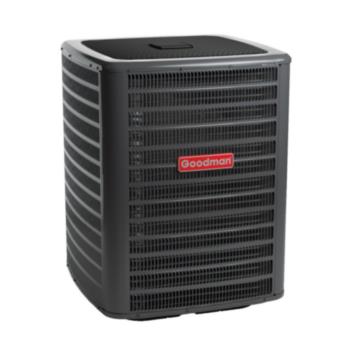

Goodman GSXC180361 Goodman Split Air Conditioner 18 SEER (3 tons / 34000 Btu)

Goodman GSXC180361 Goodman Split Air Conditioner 18 SEER (3 tons / 34000 Btu)

Dropship

Get it by Sat, Dec 14 - Thu, Dec 19

SKU SKU:kpi027-GSXC180361

Regular price $2,611.00 USD
Regular price Sale price $2,611.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
capacity: 34000 Btu
depth: 35-3/4 in
height: 40 in
manufacturer: Goodman
mpn: GSXC180361
seer: 18 SEER
voltage: 1 Ph
weight: 238
width: 35-3/4 in

Product Description

Goodman - GSXC180361 Goodman GSXC18 Split Air Conditioner 18 SEER, Two Stage, 3 Ton, ComfortBridge Technology compatible

Specification :

  • 1. High-efficiency two-stage scroll compressor
  • 2. High-efficiency two-speed ECM condenser fan motor
  • 3. ComfortBridge Communications System compatible
  • 4. Factory-installed filter drier
  • 5. Factory-installed high and low-pressure switches
  • 6. High-density foam compressor sound blanket
  • 7. Copeland‚ ® ComfortAlert built in diagnostics
  • 8. Fully charged for fifteen feet of tubing length
  • 9. Factory-installed sensors monitoring coil and ambient temperature
  • 10. Contactor with lug connection
  • 11. In communicating mode, only two low voltage wires to the outdoor unit are required
  • 12. AHRI Certified - ETL Listed
  • 13. Ground lug connection
  • 14. Color-coded terminal strip for non-communicating set-up
  • 15. Copper tube enhanced aluminum fin coil
  • 16. Customized control algorithms

Cabinet Features :

  • 1. Heavy-gauge galvanized steel cabinet and louvered coil guards
  • 2. Service valves with sweat connections and easy-access gauge ports
  • 3. Engineered sound control top design
  • 4. Wire fan discharge grille
  • 5. Baked-on powder-paint finish with 500-hour salt-spray approval
  • 6. Single-panel access to controls with space for field-installed accessories
  • 7. Service port and controls are accessible while unit is operating
  • 8. Compact footprint
  • 9. Rust-resistant screws
  • 10. When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Additional Information

Compressor StagesTwo Stage
Compressor TypeScroll
Cooling Capacity Rated34000 Btu/H
Unit Depth35-3/4 in
Unit Height40 in
Unit Width35-3/4 in
Efficiency18 SEER
Family DescriptionHigh-Efficiency Split System Air Conditioner Up to 19 SEER 14 EER
Max. Voltage253 V
Min. Circuit21.3 A
Min. Voltage197 V
Model Efficiency18 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyGSXC18
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage3 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter3/8 in
Suction Valve Outside Diameter3/4 in
Unit Weight238 lb
