depth:
35-3/4 in
height:
37 in
manufacturer:
Goodman
mpn:
GSZ160241
seer:
16 SEER
voltage:
1 Ph
weight:
180
width:
35-3/4 in

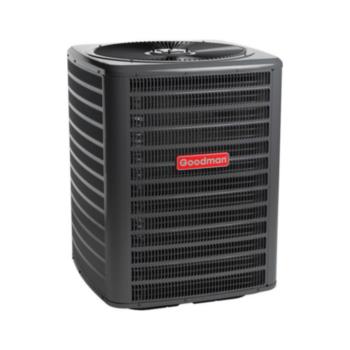

Goodman - GSZ160241 Goodman GSZ16 Split Heat Pump 16 SEER HSPF, Single Stage, 2 Ton,
Specification :
- 1. Energy-efficient compressor
- 2. Single-speed PSC condenser fan motor
- 3. Factory-installed filter drier
- 4. Factory-installed suction line accumulator
- 5. Factory-installed compressor crankcase heater
- 6. Factory-installed high-capacity muffler
- 7. Factory-installed high and low-pressure switches
- 8. SmartShift‚ ® technology with short-cycle protection to ensure quiet, reliable defrost
- 9. Contactor with lug connection
- 10. Fully charged for fifteen feet of tubing length
- 11. AHRI Certified-ETL Listed
- 12. Copper tube enhanced aluminum fin coil.
Cabinet Features :
- 1. Heavy-gauge galvanized steel cabinet and louvered coil guards
- 2. Service valves with sweat connections and easy-access gauge ports
- 3. Engineered sound control top design
- 4. Baked-on powder-paint finish with 500-hour salt-spray approval
- 5. Single-panel access to controls with space for field-installed accessories
- 6. Service port and controls are accessible while unit is operating
- 7. Compact footprint
- 8. Rust-resistant screws
- 9. When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Additional Information
Compressor StagesSingle Stage
Compressor TypeScroll
Unit Depth35-3/4 in
Unit Height37 in
Unit Width35-3/4 in
Efficiency16 SEER
Family DescriptionHigh-Efficiency Split System Heat Pump Up to 16 SEER 9.5 HSPF
Max. Voltage253 V
Min. Circuit14.7 A
Min. Voltage197 V
Model Efficiency16 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyGSZ16
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage2 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter3/8 in
Suction Valve Outside Diameter3/4 in
Unit Weight180 lb
