capacity:
34400 Btu
depth:
35-1/2 in
height:
40 in
manufacturer:
Goodman
mpn:
GSZC160361
seer:
16 SEER
voltage:
1 Ph
weight:
240
width:
35-1/2 in

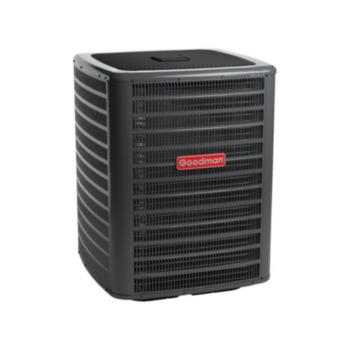

Goodman - GSZC160361 Goodman GSZC16 Split Heat Pump 16 SEER 9 HSPF, Two Stage, 3 Ton, ComfortBridge Technology compatible
Specification :
- 1. High-efficiency two-stage scroll compressor
- 2. High-efficiency two-speed ECM condenser fan motor
- 3. ComfortNet Communications System compatible
- 4. Factory-installed filter drier
- 5. Factory-installed suction line accumulator
- 6. Factory-installed compressor crankcase heater
- 7. Factory-installed high-capacity muffler
- 8. Factory-installed high and low-pressure switches
- 9. High-density foam compressor sound blanket
- 10. Factory-installed sensors monitoring coil and ambient temperature
- 11. Copeland‚ ® ComfortAlert built in diagnostics
- 12. SmartShift‚ ® technology with short-cycle protection to ensure quiet, reliable defrost
- 13. In communicating mode, only two low voltage wires to the outdoor unit are required
- 14. Contactor with lug connection
- 15. Customized control algorithms
- 16. Fully charged for fifteen feet of tubing length
- 17. AHRI Certified-ETL Listed
- 18. Color-coded terminal strip for non-communicating set-up
- 19. Copper tube enhanced aluminum fin coil.
Cabinet Features :
- 1. Heavy-gauge galvanized steel cabinet and louvered coil guards
- 2. Service valves with sweat connections and easy-access gauge ports
- 3. Engineered sound control top design
- 4. Wire fan discharge grille
- 5. Baked-on powder-paint finish with 500-hour salt-spray approval
- 6. Single-panel access to controls with space for field-installed accessories
- 7. Service port and controls are accessible while unit is operating
- 8. Compact footprint
- 9. Rust-resistant screws
- 10. When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Additional Information
Compressor StagesTwo Stage
Compressor TypeScroll
Cooling Capacity Rated34400 Btu/H
Unit Depth35-1/2 in
Unit Height40 in
Unit Width35-1/2 in
Efficiency16 SEER
Family Description16 SEER Two-Stage Heat Pump
Max. Voltage253 V
Min. Circuit19.5 A
Min. Voltage197 V
Model Efficiency16 SEER
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208/230 V
FamilyGSZC16
Prop65 Label RequiredTRUE
RefrigerantR-410A
Tonnage3 tons
Unit TypeOutdoor
Liquid Valve Outside Diameter3/8 in
Suction Valve Outside Diameter7/8 in
Unit Weight240 lb
