capacity:
51150 BTU
category:
Parts,Supplies & Accessories
heating_capacity:
51150 BTU
manufacturer:
Goodman
mpn:
HKP-15C
subcategory:
Heating Components
weight:
9

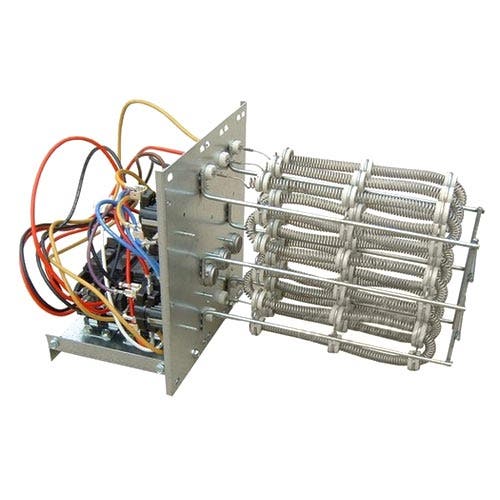

Goodman - HKP-15C
This 240 volt heater coil can be added to a Goodman packaged units to provide winter-time heating capabilities.
Produces 51,150 BTUs of heat.
Controlled by sequencers for optimum temperature balance. Completely assembled and tested. Built-in overcurrent protection on all units as indicated in electrical data chart (see spec sheet). Multiple branch circuit capability. High temperature limit controls for safe operation. Plug-in wiring harness for easy installation into air handlers. Rust-resistant nickel chromium heat elements.
Additional Information
SKU HKP-15C
Weight (in lbs) 9.000000
Brand/Manufacturer Goodman
Heating BTU 51,150
Electric Heat 15 Kilowatts
Electrical 208 / 230 / 240 Volts / 1 Phase
Phase Single Phase
Max Breaker Size Circuit 1: 50 amps / Circuit 2: 25 amps
Min. Breaker Size Circuit 1: 43 amps / Circuit 2: 21 amps
Warranty 10 Years with Online Registration
