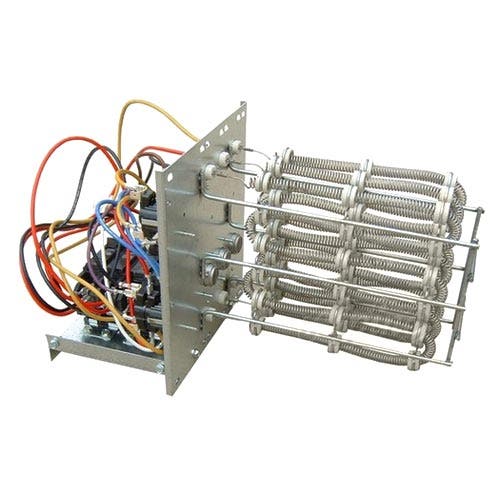

Goodman HKR-05C 5 Kilowatt 16,200 BTU Heater Coil

Goodman HKR-05C 5 Kilowatt 16,200 BTU Heater Coil

Dropship

Get it by Sat, Dec 14 - Thu, Dec 19

SKU SKU:kpi027-HKR-05C

Regular price $95.00 USD
Regular price Sale price $95.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
capacity: 16200 BTU
category: Parts,Supplies & Accessories
heating_capacity: 16200 BTU
manufacturer: Goodman
mpn: HKR-05C
subcategory: Heating Components
weight: 9

Product Description

Goodman - HKR-05C

This 240 volt heater coil can be added to a Goodman air handler to provide winter-time heating capabilities.

Produces 16,200 BTUs of heat.

Controlled by sequencers for optimum temperature balance. Completely assembled and tested. Built-in overcurrent protection on all units as indicated in electrical data chart (see spec sheet). Multiple branch circuit capability. High temperature limit controls for safe operation. Plug-in wiring harness for easy installation into air handlers. Rust-resistant nickel chromium heat elements.

If you are installing a heater coil in an air handler, line voltage is to be connected directly to the heater coil which will operate both the heater coil and air handler. A separate circuit for the air handler is not needed. If you are installing the heater coil in a packaged air conditioner or heat pump, another circuit in addition to the heater coil circuit(s) is still required to operate the packaged unit

Depending on the heater coil size being installed, one or two circuits to the heater coil will be necessary (see "PRODUCT SPECIFICATIONS" below for quantity and amperage of circuits required for this heater coil.) At your home's circuit panel, individual 220 volt double-pole circuit breakers are required for each circuit.

Compatible With

  • Goodman MBR Modular Blowers
  • Goodman MBVC Modular Blowers

Additional Information

SKU HKR-05C
Weight (in lbs) 9.000000
Brand/Manufacturer Goodman
Heating BTU 16,200
Electric Heat 5 Kilowatts
Electrical 208 / 230 / 240 Volts / 1 Phase
Phase Single Phase
Max Breaker Size 30 Amps
Min. Breaker Size 24 Amps
Warranty 10 Years with Online Registration
