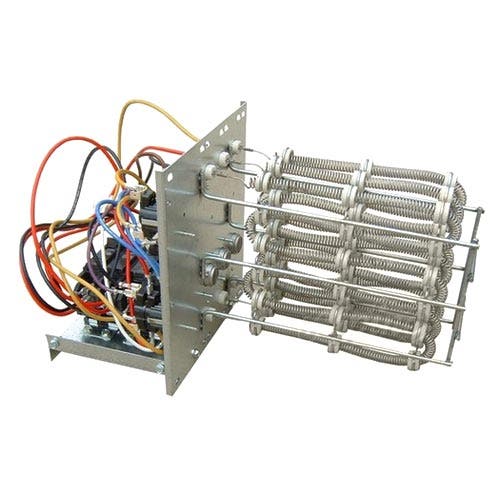

Goodman HKR-10C 10 Kilowatt 34,100 BTU Heater Coil

This 240 volt heater coil can be added to a Goodman air handler to provide winter-time heating capabilities.

Produces 34,100 BTUs of heat.

Controlled by sequencers for optimum temperature balance. Completely assembled and tested. Built-in overcurrent protection on all units as indicated in electrical data chart (see spec sheet). Multiple branch circuit capability. High temperature limit controls for safe operation. Plug-in wiring harness for easy installation into air handlers. Rust-resistant nickel chromium heat elements.

If you are installing a heater coil in an air handler, line voltage is to be connected directly to the heater coil which will operate both the heater coil and air handler. A separate circuit for the air handler is not needed. If you are installing the heater coil in a packaged air conditioner or heat pump, another circuit in addition to the heater coil circuit(s) is still required to operate the packaged unit

Depending on the heater coil size being installed, one or two circuits to the heater coil will be necessary (see "PRODUCT SPECIFICATIONS" below for quantity and amperage of circuits required for this heater coil.) At your home's circuit panel, individual 220 volt double-pole circuit breakers are required for each circuit.

Compatible With

• Goodman MBR Modular Blowers
• Goodman MBVC Modular Blowers
