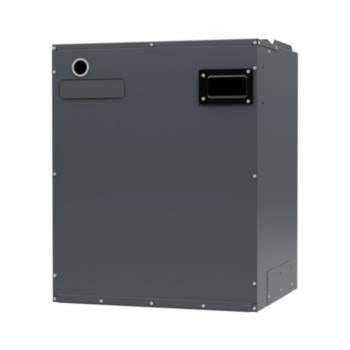

Goodman MBVC1201AA-1 Goodman MBVC Air Handler

Goodman MBVC1201AA-1 Goodman MBVC Air Handler

Dropship

SKU SKU:kpi027-MBVC1201AA-1

Regular price $872.00 USD
Regular price Sale price $872.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
manufacturer: Goodman
mpn: MBVC1201AA-1
voltage: 1 Ph

Goodman - MBVC1201AA-1 MBVC Ducted Multi-position Modular Blower, Variable Speed ECM Motor, 1200 CFM, Cabinet, ComfortBridge Technology compatible

Specification :

  • 1. Variable-speed ECM blower motor
  • 2. Integrated communicating ComfortBridge technology
  • 3. Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
  • 4. Advanced configuration of the airflow and tonnage in communicating mode
  • 5. Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • 6. CFM indicator
  • 7. Provides adjustable low CFM for efficient fan-only operation
  • 8. Improved humidity and comfort control
  • 9. Built-in compatibility with multi-stage heat pump and cooling applications
  • 10. 3 kW ¢â‚¬œ 21 kW electric heat kits
  • 11. Blower section usable as electric heater
  • 12. AHRI certified
  • 13. ETL listed

Additional Information

  • 1. Horizontal or vertical configuration capabilities
  • 2. 21" depth for easier attic access
  • 3. Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • 4. Galvanized, leather grain-embossed finish
  • 5. Cabinet air leakage less than 2% at 1.0 inch H20 when tested in accordance with ASHRE standard 193
  • 6. Cabinet air leakage less than 1.4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193
Family DescriptionMulti-Position, Variable-Speed ECM-Based, Modular Blower ComfortBridge Compatible
Max. Voltage253 V
Min. Voltage197 V
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208-230 V
FamilyMBVC_1
Prop65 Label RequiredTRUE
Unit TypeIndoor
