Goodman

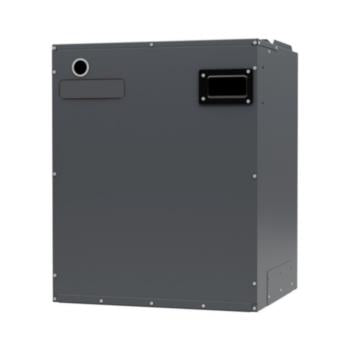

Goodman MBVC1600AA-1 MBVC Air Handler

Goodman MBVC1600AA-1 MBVC Air Handler

Dropship

SKU SKU:kpi027-MBVC1600AA-1

Regular price $938.00 USD
Regular price Sale price $938.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
depth: 21 in
height: 30 in
manufacturer: Goodman
mpn: MBVC1600AA-1
voltage: 1 Ph
weight: 80
width: 21 in

Goodman - MBVC1600AA-1 MBVC Ducted Multi-position Modular Blower, Variable Speed ECM Motor, 1600 CFM, 21 in Cabinet, Daikin One+ Smart Thermostat compatible

Specification :

  • Variable-speed ECM blower motor
  • Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment
  • Advanced configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Fault recall of six most recent faults
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications
  • 3 kW ¢â‚¬œ 21 kW electric heat kits
  • Blower section usable as electric heater
  • Horizontal or vertical configuration capabilities
  • 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Cabinet air leakage less than 2% at 1.0 inch H20 when tested in accordance with ASHRE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193
  • AHRI certified
  • ETL listed

Additional Information

  • 1. Horizontal or vertical configuration capabilities
  • 2. 21" depth for easier attic access
  • 3. Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • 4. Galvanized, leather grain-embossed finish
  • 5. Cabinet air leakage less than 2% at 1.0 inch H20 when tested in accordance with ASHRE standard 193
  • 6. Cabinet air leakage less than 1.4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193
Unit Depth21 in
Unit Height30 in
Unit Width21 in
Family DescriptionMulti-Position, Variable-Speed ECM-Based, Modular Blower Communicating
Max. Voltage253 V
Min. Circuit6.3 A
Min. Voltage197 V
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208-230 V
FamilyMBVC
Prop65 Label RequiredTRUE
RefrigerantR-410A
Unit TypeIndoor
Unit Weight80 lb
