manufacturer:
Goodman
mpn:
MBVC1601AA-1
voltage:
1 Ph
Product Description

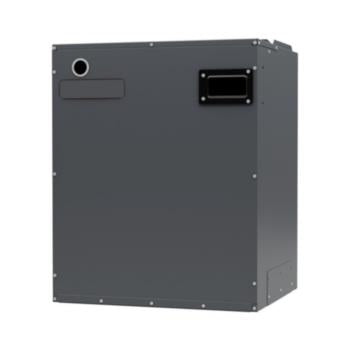

Goodman - MBVC1601AA-1 MBVC Ducted Multi-position Modular Blower, Variable Speed ECM Motor, CFM, Cabinet, ComfortBridge Technology compatible
Specification :
- 1. Variable-speed ECM blower motor
- 2. Integrated communicating ComfortBridge technology
- 3. Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
- 4. Advanced configuration of the airflow and tonnage in communicating mode
- 5. Provides constant CFM over a wide range of static pressure conditions independent of duct system
- 6. CFM indicator
- 7. Provides adjustable low CFM for efficient fan-only operation
- 8. Improved humidity and comfort control
- 9. Built-in compatibility with multi-stage heat pump and cooling applications
- 10. 3 kW ¢â‚¬œ 21 kW electric heat kits
- 11. Blower section usable as electric heater
- 12. AHRI certified
- 13. ETL listed
Additional Information
- 1. Horizontal or vertical configuration capabilities
- 2. 21" depth for easier attic access
- 3. Foil-faced insulation covers the internal casing to reduce cabinet condensation
- 4. Galvanized, leather grain-embossed finish
- 5. Cabinet air leakage less than 2% at 1.0 inch H20 when tested in accordance with ASHRE standard 193
- 6. Cabinet air leakage less than 1.4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193
Family DescriptionMulti-Position, Variable-Speed ECM-Based, Modular Blower ComfortBridge Compatible
Max. Voltage253 V
Min. Voltage197 V
Power Frequency60 Hz
Power Phase1 Ph
Power Voltage208-230 V
FamilyMBVC_1
Prop65 Label RequiredTRUE
Unit TypeIndoor
