Goodman1.5 Ton 15 SEER2 97% AFUE 60,000 BTU Goodman Gas Furnace and Air Conditioner System - Horizontal (GSXN-CHPT-GCVM)

Goodman1.5 Ton 15 SEER2 97% AFUE 60,000 BTU Goodman Gas Furnace and Air Conditioner System - Horizontal (GSXN-CHPT-GCVM)

Dropship

SKU SKU:kpi027-GSXN401810CHPTA2426B4GCVM970603BN

Regular price $4,667.00 USD
Regular price Sale price $4,667.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
capacity: 18000 BTU
category: Furnace & Air Conditioner Systems
furnace_efficiency_afue: 97%
heating_capacity: 60000 BTU
manufacturer: Goodman
mpn: GSXN401810CHPTA2426B4GCVM970603BN
subcategory: Furnace & Air Conditioner Systems
weight: 310

Goodman - GSXN401810CHPTA2426B4GCVM970603BN With a variable speed blower motor and modulating gas valves, the GCVM970603BN is from the best furnace series that Goodman has to offer. At 97% efficient, this furnace has the highest possible efficiency available in today™s technology and offered by Goodman. If you want the best of the best for your home, the GCVM970603BN is the furnace for you.

Features
  • Ideal to heat a medium-sized house (in an ideal climate)
  • 60,000 BTU 97% AFUE modulating variable speed natural gas furnace
  • Requires plastic/PVC flue venting
  • Can be installed in the downflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

Additional Information

MPN GCVM970603BN
Weight (in lbs) 117.000000
Exhaust Flue Requirement Plastic / PVC
Brand/Manufacturer Goodman
Furnace Efficiency / AFUE 97%
Heating BTU 60,000
Blower Motor Variable Speed - ECM
Maximum CFM 1200
Configuration Downflow/Horizontal
Exhaust Pipe PVC
Flue Location Right
Energy Star Yes
Electrical 115 V. 1 Phase 60 Hz
Burner Stages Modulating
Fuel Type Propane, Natural Gas
Height 34.5"
Width 17.5"
Depth 28.75"
Warranty 10 Years with Online Registration

1.5 Ton 14.3 SEER2 Goodman Air Conditioner Condenser

The Goodman brand has been focused on providing efficiency and comfort where it matters most while still being an inexpensive brand. With its superior components and a standard efficiency, the Goodman GSXN401810 air conditioner condenser is a popular choice for homeowners around the United States.

Features
  • Ideal size to cover a small house in ideal climates
  • 1.5 ton, 14.3 SEER2 AC-only condenser
  • Fully charged for up to 15" of line set
  • Low sound output
  • Factory-installed filter drier

Additional Information

MPN GSXN401810
Weight (in lbs) 136.000000
Brand/Manufacturer Goodman
Replaces GSX130181
Cooling BTU 18,000
Blower Motor Single Speed PSC Motor
Decibel Level (dBA) 71
Horsepower 0.125 HP
Refrigerant R410A
SEER2 (Efficiency) 14.3
Condenser Stages Single Stage
Compressor Type Rotary
Liquid Line 3/8"
Suction Line 3/4"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 15 Amps
Min. Breaker Size 8.3 Amps
Tonnage 1.5 Ton
Connection Sweat
Height 27"
Width 26"
Depth 26"
Warranty 10 Years Parts with Online Registration

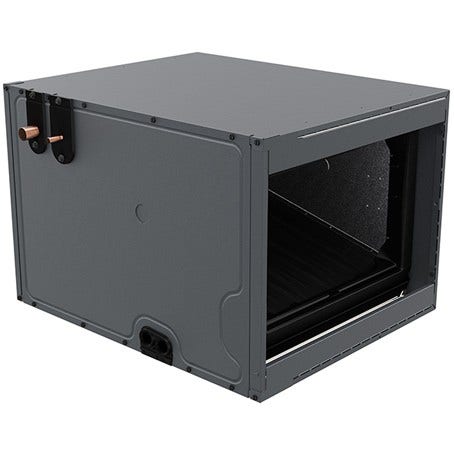

2 Ton 17.5" Height Goodman Horizontal Evaporator Coil - Cased

The Goodman CHPTA2426B4 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPTA2426B4 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Features
  • 2 ton horizontal evaporator coil
  • Can be used with heat pump and AC-only condensers
  • Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
  • Factory-installed TXV kit

Additional Information

MPN CHPTA2426B4
Weight (in lbs) 57.000000
Brand/Manufacturer Goodman
Configuration Horizontal
Refrigerant R410A
Liquid Line 3/8"
Suction Line 7/8"
Tonnage 2 Ton
Style A-Coil
Certification ETL Listed
Height 17.5"
Width 26"
Depth 21"
Warranty 10 Years Parts with Online Registration
