Goodman

Goodman2 Ton 14.5 SEER2 96% AFUE 80,000 BTU Goodman Gas Furnace and Air Conditioner System - Downflow (GSXH-CAPT-GC9C)

Goodman2 Ton 14.5 SEER2 96% AFUE 80,000 BTU Goodman Gas Furnace and Air Conditioner System - Downflow (GSXH-CAPT-GC9C)

Dropship

SKU SKU:kpi027-GSXH502410CAPTA3022B4GC9C960803BN

Regular price $4,763.00 USD
Regular price Sale price $4,763.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
capacity: 24000 BTU
category: Furnace & Air Conditioner Systems
furnace_efficiency_afue: 96%
heating_capacity: 80000 BTU
manufacturer: Goodman
mpn: GSXH502410CAPTA3022B4GC9C960803BN
subcategory: Furnace & Air Conditioner Systems
weight: 335

Goodman - GSXH502410CAPTA3022B4GC9C960803BN The Goodman brand consistently brings efficiency and other cost-saving benefits and technology to their furnace. The GC9C960803BN gas furnace is no exception to Goodman™s ingenuity in design, bringing you comfort at a high efficiency for any downflow or horizontal application.

Features
  • This furnace is ideal to heat a medium-sized house (depending on climate)
  • 80,000 BTU 96% AFUE natural gas furnace
  • Requires plastic/PVC flue venting
  • Can be used in the downflow or horizontal orientation
  • Can be converted to an LP furnace with an optional conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

Additional Information

MPN GC9C960803BN
Weight (in lbs) 118.000000
Exhaust Flue Requirement Plastic / PVC
Brand/Manufacturer Goodman
Furnace Efficiency / AFUE 96%
Heating BTU 80,000
Blower Motor 9-Speed - ECM
Maximum CFM 1200
Configuration Downflow/Horizontal
Exhaust Pipe PVC
Energy Star Yes
Electrical 115 V. 1 Phase 60 Hz
Burner Stages Two
Fuel Type Gas
Height 34.5"
Width 17.5"
Depth 28.75"
Warranty 10 Years with Online Registration

2 Ton 15.2 SEER2 High Efficiency Goodman Air Conditioner Condenser

Goodman has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The GSXH502410 is no exception, with its durability, reliability, and one of the highest efficiencies available.

Features
  • Ideal size to cover a smaller house in ideal climates
  • 2 ton, 15.2 SEER2 AC-only condenser
  • Fully charged for up to 15' of line set
  • Low sound output
  • Factory-installed filter drier

Additional Information

MPN GSXH502410
Weight (in lbs) 169.000000
Brand/Manufacturer Goodman
Replaces GSX160241
Cooling BTU 24,000
Blower Motor Single Speed PSC Motor
Decibel Level (dBA) 73
Horsepower 0.167 HP
Refrigerant R410A
SEER2 (Efficiency) 15.2
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 3/4"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 25 Amps
Min. Breaker Size 15.3 Amps
Tonnage 2 Ton
Connection Sweat
Height 32"
Width 29"
Depth 29"
Warranty 10 Years Parts with Online Registration

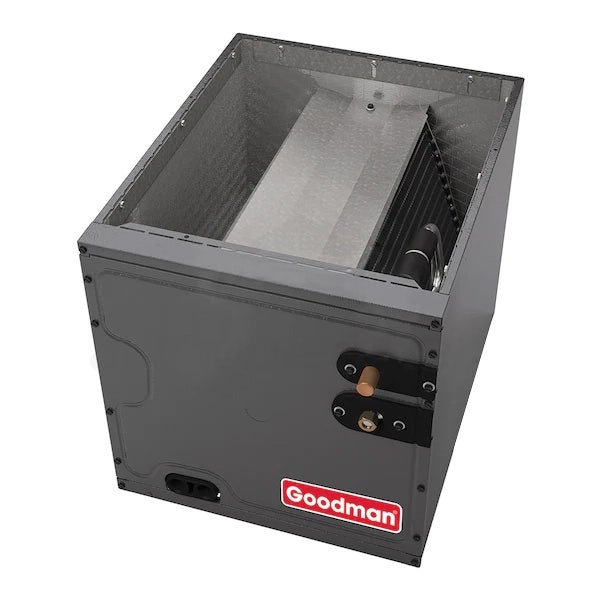

2.5 Ton 17.5" Width Goodman Upflow/Downflow Evaporator Coil - Cased - TXV

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPT is a cased A-Coil for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features
  • All-Aluminum Coil: The design of Goodman's evaporator coils maximizes surface area and optimizes heat transfer for efficient comfort. Using a reliable all-aluminum design using sine fins and grooved tubes.
  • Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
  • Secure Cabinet: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
  • Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
  • Refrigerant Compatibility: The CAPTA is only compatible with R-410A refrigerant.
  • Extended Warranty: 10-year limited warranty

Additional Information

MPN CAPTA3022B4
Weight (in lbs) 48.000000
Brand/Manufacturer Goodman
Cooling BTU 30,000
Configuration Upflow / Downflow
Refrigerant R410A
Liquid Line 3/8"
Suction Line 3/4"
Tonnage 2.5 Ton
BTU/Tonnage 30,000 BTU/2.5 Ton
Certification ETL Listed, AHRI Certified
Height 22"
Width 17.5"
Depth 21"
Warranty 10-year limited
