Goodman

Goodman2 Ton 16.5 SEER2 96% AFUE 40,000 BTU Goodman Gas Furnace and Air Conditioner System - Downflow (GSXC-CAPT-GCVC)

Goodman2 Ton 16.5 SEER2 96% AFUE 40,000 BTU Goodman Gas Furnace and Air Conditioner System - Downflow (GSXC-CAPT-GCVC)

Dropship

SKU SKU:kpi027-GSXC702410CAPTA2422B4GCVC960403BN

Regular price $5,169.00 USD
Regular price Sale price $5,169.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

Product details

capacity: 24000 BTU
category: Furnace & Air Conditioner Systems
furnace_efficiency_afue: 96%
heating_capacity: 40000 BTU
manufacturer: Goodman
mpn: GSXC702410CAPTA2422B4GCVC960403BN
subcategory: Furnace & Air Conditioner Systems
weight: 400

Product Overview

40,000 BTU 96% AFUE Variable Speed Goodman Gas Furnace - Downflow/Horizontal

With top of the line technology at high efficiency, two stage burner, and variable speed blower motor, the GCVC960403BN is another high-end gas furnace manufactured by Goodman. With enhanced durability and reliability, you can expect this Goodman gas furnace to perform well throughout its life to provide consistent comfort and lower the overall cost of bills to keep money in your pocket for many years to come.

Features

  • This furnace is ideal to heat a smaller house (in average climate conditions)
  • 40,000 BTU 96% AFUE two stage variable speed natural gas furnace
  • Requires plastic/PVC flue venting
  • Can be used in the downflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

Additional Information

MPN GCVC960403BN
Weight (in lbs) 116.000000
Exhaust Flue Requirement Plastic / PVC
Brand/Manufacturer Goodman
Furnace Efficiency / AFUE 96%
Heating BTU 40,000
Blower Motor Variable Speed - ECM
Maximum CFM 1200
Configuration Downflow/Horizontal
Exhaust Pipe PVC
Flue Location Right
Electrical 115 V. 1 Phase 60 Hz
Burner Stages Two
Fuel Type Propane, Natural Gas
Height 34.5"
Width 17.5"
Depth 28.75"
Warranty 10 Years with Online Registration

2 Ton 17.2 SEER2 High Efficiency Goodman Air Conditioner Condenser

Built with a superior design, Goodman manufactured the GSXC702410 to be whisper-quiet, to be extremely efficient, and to provide the best comfort possible. The GSXC702410 is considered from the best of the best series of AC condenser that Goodman has to offer, making it a top-quality unit to suit the all of your cooling needs.

Features

  • Ideal size to cover a smaller house in ideal climates
  • 2 Ton, 17.2 SEER2 AC-only condenser
  • Two Stage
  • Lowest possible sound output
  • Fully charged for up to 15' of line set
  • Factory-installed filter drier

Additional Information

MPN GSXC702410
Weight (in lbs) 236.000000
Brand/Manufacturer Goodman
Replaces GSXC1602410GSXC1802410
Cooling BTU 24,000
Blower Motor Two Stage ECM Motor
Decibel Level (dBA) 71
Horsepower 0.333 HP
Energy Star Yes
Refrigerant R410A
SEER2 (Efficiency) 17.2
Condenser Stages Two Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 3/4"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 25 Amps
Min. Breaker Size 15.3 Amps
Tonnage 2 Ton
Connection Sweat
Height 39 1/2"
Width 35 1/2"
Depth 35 1/2"
Warranty 10 Years Parts and Lifetime Compressor with Online Registration

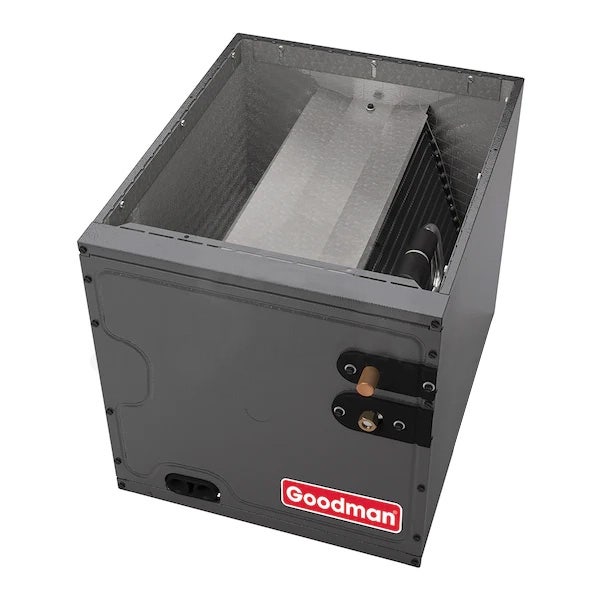

2 Ton 17.5" Width Goodman Upflow/Downflow Evaporator Coil - Cased - TXV

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPT is a cased A-Coil for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features

  • All-Aluminum Coil: The design of Goodman's evaporator coils maximizes surface area and optimizes heat transfer for efficient comfort. Using a reliable all-aluminum design using sine fins and grooved tubes.
  • Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
  • Secure Cabinet: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
  • Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
  • Refrigerant Compatibility: The CAPTA is only compatible with R-410A refrigerant.
  • Extended Warranty: 10-year limited warranty

Additional Information

MPN CAPTA2422B4
Weight (in lbs) 48.000000
Brand/Manufacturer Goodman
Cooling BTU 24,000
Configuration Upflow / Downflow
Refrigerant R410A
Liquid Line 3/8"
Suction Line 3/4"
Tonnage 2 Ton
BTU/Tonnage 24,000 BTU/2 Ton
Certification ETL Listed, AHRI Certified
Height 22"
Width 17.5"
Depth 21"
Warranty 10-year limited
