Goodman

Goodman2 Ton 17.2 SEER2 80% AFUE 80,000 BTU Goodman Gas Furnace and Air Conditioner System - Horizontal (GSXC-CHPT-GCVC)

Goodman2 Ton 17.2 SEER2 80% AFUE 80,000 BTU Goodman Gas Furnace and Air Conditioner System - Horizontal (GSXC-CHPT-GCVC)

Dropship

Get it by Sun, Dec 15 - Fri, Dec 20

SKU SKU:kpi027-GSXC702410CHPTA2426B4GCVC800803BX

Regular price $4,886.00 USD
Regular price Sale price $4,886.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
capacity: 24000 BTU
category: Furnace & Air Conditioner Systems
furnace_efficiency_afue: 80%
heating_capacity: 80000 BTU
manufacturer: Goodman
mpn: GSXC702410CHPTA2426B4GCVC800803BX
subcategory: Furnace & Air Conditioner Systems
weight: 402

Product Description

Goodman - GSXC702410CHPTA2426B4GCVC800803BX The GCVC800803BX gas furnace is from one of the top-of-the-line series by Goodman. Considered one of the best of the best, this furnace has a two stage burner and a variable speed blower motor. With the best durability and reliability that Goodman 80% efficient furnaces have to offer, and a lower emissions output to match the low NOx compliance regulations in California, we are proud to offer you the Goodman GCVC800803BX gas furnace.

Features
  • This furnace is ideal to heat a medium-size house (in average climate conditions)
  • 80,000 BTU 80% AFUE two stage variable speed natural gas furnace
  • Low NOx Compliant
  • Requires metal flue venting
  • Can be used in the downflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

Additional Information

MPN GCVC800803BX
Weight (in lbs) 109.000000
Exhaust Flue Requirement Metal
Brand/Manufacturer Goodman
Furnace Efficiency / AFUE 80%
Heating BTU 80,000
Blower Motor Variable Speed
Maximum CFM 1200
Configuration Downflow/Horizontal
Electrical 115 VAC, 60 Hz
Low NOx Low NOx
Burner Stages Two
Fuel Type Propane, Natural Gas
Certification AHRI Certified; ETL Listed
Height 33 3/8"
Width 17.5"
Depth 28"
Warranty Lifetime Heat Exchanger, 10 Years Parts, and 10 Years Unit Replacement Warranty with Online Registration

2 Ton 17.2 SEER2 High Efficiency Goodman Air Conditioner Condenser

Built with a superior design, Goodman manufactured the GSXC702410 to be whisper-quiet, to be extremely efficient, and to provide the best comfort possible. The GSXC702410 is considered from the best of the best series of AC condenser that Goodman has to offer, making it a top-quality unit to suit the all of your cooling needs.

Features
  • Ideal size to cover a smaller house in ideal climates
  • 2 Ton, 17.2 SEER2 AC-only condenser
  • Two Stage
  • Lowest possible sound output
  • Fully charged for up to 15' of line set
  • Factory-installed filter drier

Additional Information

MPN GSXC702410
Weight (in lbs) 236.000000
Brand/Manufacturer Goodman
Replaces GSXC1602410GSXC1802410
Cooling BTU 24,000
Blower Motor Two Stage ECM Motor
Decibel Level (dBA) 71
Horsepower 0.333 HP
Energy Star Yes
Refrigerant R410A
SEER2 (Efficiency) 17.2
Condenser Stages Two Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 3/4"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 25 Amps
Min. Breaker Size 15.3 Amps
Tonnage 2 Ton
Connection Sweat
Height 39 1/2"
Width 35 1/2"
Depth 35 1/2"
Warranty 10 Years Parts and Lifetime Compressor with Online Registration

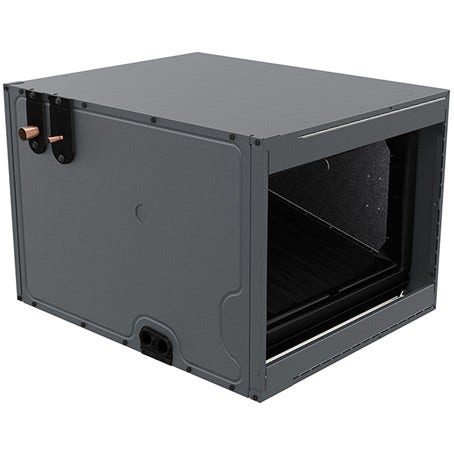

2 Ton 17.5" Height Goodman Horizontal Evaporator Coil - Cased

The Goodman CHPTA2426B4 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPTA2426B4 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Features
  • 2 ton horizontal evaporator coil
  • Can be used with heat pump and AC-only condensers
  • Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
  • Factory-installed TXV kit

Additional Information

MPN CHPTA2426B4
Weight (in lbs) 57.000000
Brand/Manufacturer Goodman
Configuration Horizontal
Refrigerant R410A
Liquid Line 3/8"
Suction Line 7/8"
Tonnage 2 Ton
Style A-Coil
Certification ETL Listed
Height 17.5"
Width 26"
Depth 21"
Warranty 10 Years Parts with Online Registration
