Goodman

Goodman3.5 Ton 14.5 SEER2 96% AFUE 120,000 BTU Goodman Gas Furnace and Air Conditioner System - Upflow (GSXN-CAPT-GM9S)

Goodman3.5 Ton 14.5 SEER2 96% AFUE 120,000 BTU Goodman Gas Furnace and Air Conditioner System - Upflow (GSXN-CAPT-GM9S)

Dropship

SKU SKU:kpi027-GSXN404210CAPTA4230D4GM9S961205DN

Regular price $5,058.00 USD
Regular price Sale price $5,058.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
capacity: 42000 BTU
furnace_efficiency_afue: 96%
heating_capacity: 120000 BTU
manufacturer: Goodman
mpn: GSXN404210CAPTA4230D4GM9S961205DN
weight: 470

Goodman - GSXN404210CAPTA4230D4GM9S961205DN The GM9S961205DN Goodman gas furnace features high-quality construction and efficient operation at a great value. The GM9S961205DN single-stage, 9-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GM9S961205DN.

Features
  • This furnace is ideal to heat a smaller house (depending on climate)
  • 120,000 BTU 96% efficient natural gas furnace
  • Requires plastic/PVC flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to an LP furnace with a conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

Additional Information

MPN GM9S961205DN
Weight (in lbs) 156.000000
Exhaust Flue Requirement Plastic / PVC
Brand/Manufacturer Goodman
Furnace Efficiency / AFUE 96%
Heating BTU 120,000
Blower Motor 9 Speed - ECM
Maximum CFM 2000
Configuration Upflow/Horizontal
Exhaust Pipe PVC
Flue Location Right
Electrical 115 V. 1 Phase 60 Hz
Burner Stages Single
Fuel Type Propane, Natural Gas
Height 34.5"
Width 24.5"
Depth 28.75"
Warranty 10 Years with Online Registration

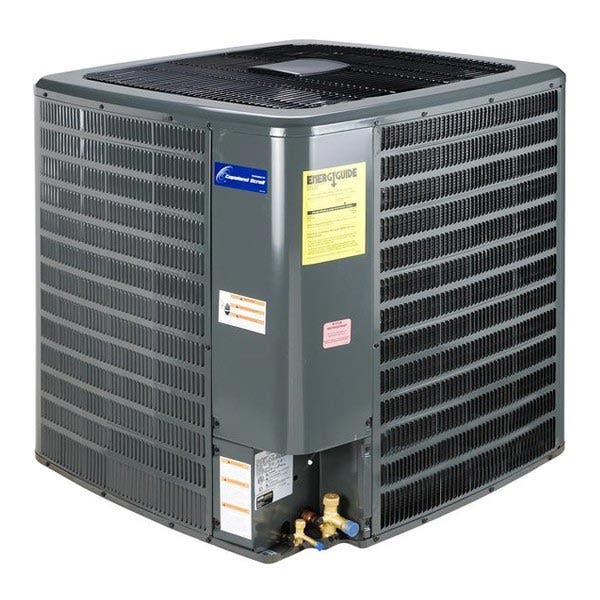

3.5 Ton 14.3 SEER2 Goodman Air Conditioner Condenser

The Goodman brand has been focused on providing efficiency and comfort where it matters most while still being an inexpensive brand. With its superior components and a standard efficiency, the Goodman GSXN404210 air conditioner condenser is a popular choice for homeowners around the United States.

Features
  • Ideal size to cover a small house in ideal climates
  • 3.5 ton, 14.3 SEER2 AC-only condenser
  • Fully charged for up to 15" of line set
  • Low sound output
  • Factory-installed filter drier

Additional Information

MPN GSXN404210
Weight (in lbs) 248.000000
Brand/Manufacturer Goodman
Replaces GSX140421
Cooling BTU 42,000
Blower Motor Single Speed PSC Motor
Decibel Level (dBA) 71
Horsepower 0.167 HP
Refrigerant R410A
SEER2 (Efficiency) 14.3
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 7/8"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 40 Amps
Min. Breaker Size 23.1 Amps
Tonnage 3.5 Ton
Connection Sweat
Height 39 1/2"
Width 35 1/2"
Depth 35 1/2"
Warranty 10 Years Parts with Online Registration

3.5 Ton 24.5" Width Goodman Upflow/Downflow Evaporator Coil - Cased - TXV

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPT is a cased A-Coil for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features
  • All-Aluminum Coil: The design of Goodman's evaporator coils maximizes surface area and optimizes heat transfer for efficient comfort. Using a reliable all-aluminum design using sine fins and grooved tubes.
  • Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
  • Secure Cabinet: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
  • Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
  • Refrigerant Compatibility: The CAPTA is only compatible with R-410A refrigerant.
  • Extended Warranty: 10-year limited warranty

Additional Information

MPN CAPTA4230D4
Weight (in lbs) 66.000000
Brand/Manufacturer Goodman
Cooling BTU 42,000
Configuration Upflow / Downflow
Refrigerant R410A
Liquid Line 3/8"
Suction Line 7/8"
Tonnage 3.5 Ton
BTU/Tonnage 42,000 BTU/3.5 Ton
Certification ETL Listed, AHRI Certified
Height 30"
Width 24.5"
Depth 21"
Warranty 10-year limited
