Goodman

Goodman3.5 Ton 15.2 SEER2 80% AFUE 80,000 BTU Goodman Gas Furnace and Air Conditioner System - Upflow (GSXH-CAPT4-GMVC)

Goodman3.5 Ton 15.2 SEER2 80% AFUE 80,000 BTU Goodman Gas Furnace and Air Conditioner System - Upflow (GSXH-CAPT4-GMVC)

Dropship

Get it by Sun, Dec 15 - Fri, Dec 20

SKU SKU:kpi027-GSXH504210CAPT4961C4GMVC800804CN

Regular price $5,249.00 USD
Regular price Sale price $5,249.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
capacity: 42000 BTU
furnace_efficiency_afue: 80%
heating_capacity: 80000 BTU
manufacturer: Goodman
mpn: GSXH504210CAPT4961C4GMVC800804CN
weight: 473

Product Description

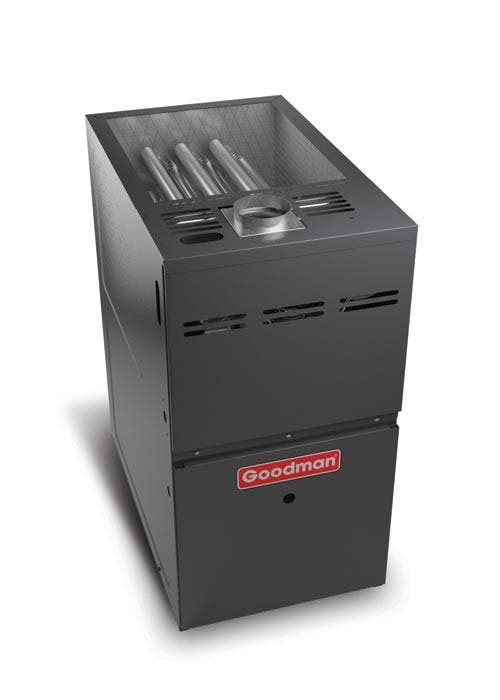

Goodman - GSXH504210CAPT4961C4GMVC800804CN The GMVC800804CN gas furnace is from one of the top-of-the-line series by Goodman. Considered one of the best of the best, this furnace has a two stage burner and a variable speed blower motor. With the best durability and reliability that Goodman 80% efficient furnaces have to offer, we are proud to offer you the Goodman GMVC800804CN gas furnace.

Features
  • This furnace is ideal to heat a medium-sized house (in average climate conditions)
  • 80,000 BTU 80% AFUE two stage variable speed natural gas furnace
  • Requires metal flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

Additional Information

MPN GMVC800804CN
Weight (in lbs) 118.000000
Exhaust Flue Requirement Metal
Brand/Manufacturer Goodman
Furnace Efficiency / AFUE 80%
Heating BTU 80,000
Blower Motor Variable Speed
Maximum CFM 1600
Configuration Upflow/Horizontal
Electrical 120v 1 Phase 60 Hz
Burner Stages Two
Fuel Type Propane, Natural Gas
Height 33 3/8"
Width 21"
Depth 28"
Warranty Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration

3.5 Ton 15.2 SEER2 High Efficiency Goodman Air Conditioner Condenser

Goodman has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The GSXH504210 is no exception, with its durability, reliability, and one of the highest efficiencies available.

Features
  • Ideal size to cover a smaller house in ideal climates
  • 3.5 ton, 15.2 SEER2 AC-only condenser
  • Fully charged for up to 15' of line set
  • Low sound output
  • Factory-installed filter drier

Additional Information

MPN GSXH504210
Weight (in lbs) 282.000000
Brand/Manufacturer Goodman
Replaces GSX160421
Cooling BTU 42,000
Blower Motor Single Speed PSC Motor
Decibel Level (dBA) 72
Horsepower 0.25 HP
Refrigerant R410A
SEER2 (Efficiency) 15.2
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 7/8"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 40 Amps
Min. Breaker Size 23.4 Amps
Tonnage 3.5 Ton
Connection Sweat
Height 36 1/2"
Width 35 1/2"
Depth 35 1/2"
Warranty 10 Years Parts with Online Registration

4 to 5 Ton 21" Width Goodman Cased Evaporator Coil with TXV

The Goodman CAPT4961C4 evaporator coil is ready for any vertical installation that you need it for. With a built-in TXV kit for efficiency, the CAPT4961C4 lives up to Goodman’s expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Features
  • 4 to 5 ton vertical evaporator coil
  • Installable in the upflow or downflow configuration
  • Usable with either a heat pump or an AC-only condenser
  • Low air leakage
  • Factory-installed TXV

Additional Information

MPN CAPT4961C4
Weight (in lbs) 73.000000
Brand/Manufacturer Goodman
Configuration Upflow / Downflow
Liquid Line 3/8"
Suction Line 7/8"
Tonnage 4 Ton to 5 Ton
Style A-Coil
Height 30"
Width 21"
Depth 21"
Warranty 10 Years with Online Registration
