Goodman3.5 Ton 15.2 SEER2 80% AFUE 80,000 BTU Goodman Gas Furnace and Air Conditioner System - Upflow (GSXH-CAPTA-GMVC)

Goodman3.5 Ton 15.2 SEER2 80% AFUE 80,000 BTU Goodman Gas Furnace and Air Conditioner System - Upflow (GSXH-CAPTA-GMVC)

Dropship

SKU SKU:kpi027-GSXH504210CAPTA4230D4GMVC800805DN

Regular price $5,204.00 USD
Regular price Sale price $5,204.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
capacity: 42000 BTU
category: Furnace & Air Conditioner Systems
furnace_efficiency_afue: 80%
heating_capacity: 80000 BTU
manufacturer: Goodman
mpn: GSXH504210CAPTA4230D4GMVC800805DN
subcategory: Furnace & Air Conditioner Systems
weight: 504

Goodman - GSXH504210CAPTA4230D4GMVC800805DN The GMVC80805DN gas furnace is from one of the top-of-the-line series by Goodman. Considered one of the best of the best, this furnace has a two stage burner and a variable speed blower motor. With the best durability and reliability that Goodman 80% efficient furnaces have to offer, we are proud to offer you the Goodman GMVC80805DN gas furnace.

Features
  • This furnace is ideal to heat a medium-sized house (in average climate conditions)
  • 80,000 BTU 80% AFUE two stage variable speed natural gas furnace
  • Requires metal flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

Additional Information

MPN GMVC800805DN
Weight (in lbs) 156.000000
Exhaust Flue Requirement Metal
Brand/Manufacturer Goodman
Furnace Efficiency / AFUE 80%
Heating BTU 80,000
Blower Motor Variable Speed
Maximum CFM 2000
Configuration Upflow/Horizontal
Electrical 120 V. 1 Phase 60 Hz
Burner Stages Two
Fuel Type Propane, Natural Gas
Height 34.5"
Width 24.5"
Depth 28.75"
Warranty 10 Years with Online Registration

3.5 Ton 15.2 SEER2 High Efficiency Goodman Air Conditioner Condenser

Goodman has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The GSXH504210 is no exception, with its durability, reliability, and one of the highest efficiencies available.

Features
  • Ideal size to cover a smaller house in ideal climates
  • 3.5 ton, 15.2 SEER2 AC-only condenser
  • Fully charged for up to 15' of line set
  • Low sound output
  • Factory-installed filter drier

Additional Information

MPN GSXH504210
Weight (in lbs) 282.000000
Brand/Manufacturer Goodman
Replaces GSX160421
Cooling BTU 42,000
Blower Motor Single Speed PSC Motor
Decibel Level (dBA) 72
Horsepower 0.25 HP
Refrigerant R410A
SEER2 (Efficiency) 15.2
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 7/8"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 40 Amps
Min. Breaker Size 23.4 Amps
Tonnage 3.5 Ton
Connection Sweat
Height 36 1/2"
Width 35 1/2"
Depth 35 1/2"
Warranty 10 Years Parts with Online Registration

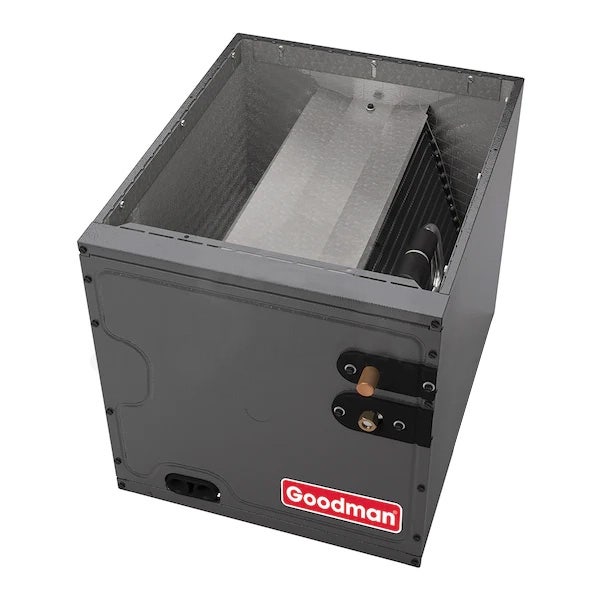

3.5 Ton 24.5" Width Goodman Upflow/Downflow Evaporator Coil - Cased - TXV

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPT is a cased A-Coil for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

Features
  • All-Aluminum Coil: The design of Goodman's evaporator coils maximizes surface area and optimizes heat transfer for efficient comfort. Using a reliable all-aluminum design using sine fins and grooved tubes.
  • Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
  • Secure Cabinet: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
  • Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
  • Refrigerant Compatibility: The CAPTA is only compatible with R-410A refrigerant.
  • Extended Warranty: 10-year limited warranty

Additional Information

MPN CAPTA4230D4
Weight (in lbs) 66.000000
Brand/Manufacturer Goodman
Cooling BTU 42,000
Configuration Upflow / Downflow
Refrigerant R410A
Liquid Line 3/8"
Suction Line 7/8"
Tonnage 3.5 Ton
BTU/Tonnage 42,000 BTU/3.5 Ton
Certification ETL Listed, AHRI Certified
Height 30"
Width 24.5"
Depth 21"
Warranty 10-year limited
