Goodman3 Ton 15.2 SEER2 96% AFUE 100,000 BTU Goodman Gas Furnace and Air Conditioner System - Downflow (GSXH-CAPTA-GC9C)

Product Description

Goodman - GSXH503610CAPTA4230C4GC9C961005CN The Goodman brand consistently brings efficiency and other cost-saving benefits and technology to their furnace. The GC9C961005CN gas furnace is no exception to Goodman™s ingenuity in design, bringing you comfort at a high efficiency for any downflow or horizontal application.

• This furnace is ideal to heat a larger house (depending on climate)
• 100,000 BTU 96% AFUE natural gas furnace
• Requires plastic/PVC flue venting
• Can be used in the downflow or horizontal orientation
• Can be converted to an LP furnace with an optional conversion kit (sold separately)
• Innovative design for electrical efficiency, safety, and lower sound output

3 Ton 15.2 SEER2 High Efficiency Goodman Air Conditioner Condenser

Goodman has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The GSXH503610 is no exception, with its durability, reliability, and one of the highest efficiencies available.

• Ideal size to cover a smaller house in ideal climates
• 3 ton, 15.2 SEER2 AC-only condenser
• Fully charged for up to 15' of line set
• Low sound output
• Factory-installed filter drier

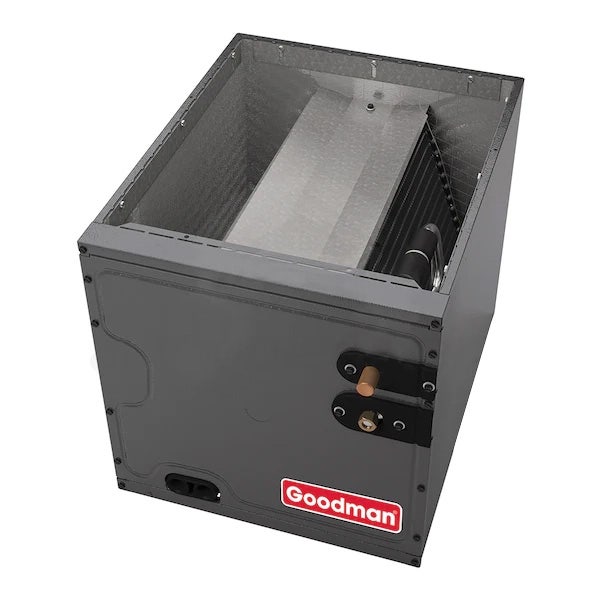

3.5 Ton 21" Width Goodman Upflow/Downflow Evaporator Coil - Cased - TXV

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPT is a cased A-Coil for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.

• All-Aluminum Coil: The design of Goodman's evaporator coils maximizes surface area and optimizes heat transfer for efficient comfort. Using a reliable all-aluminum design using sine fins and grooved tubes.
• Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
• Secure Cabinet: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
• Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
• Refrigerant Compatibility: The CAPTA is only compatible with R-410A refrigerant.
• Extended Warranty: 10-year limited warranty
