Goodman

Goodman3 Ton 15.2 SEER2 96% AFUE 100,000 BTU Goodman Gas Furnace and Air Conditioner System - Horizontal (GSXH-CHPT-GC9S9)

Goodman3 Ton 15.2 SEER2 96% AFUE 100,000 BTU Goodman Gas Furnace and Air Conditioner System - Horizontal (GSXH-CHPT-GC9S9)

Dropship

Get it by Sun, Dec 15 - Fri, Dec 20

SKU SKU:kpi027-GSXH503610CHPTA3630C4GC9S961005CN

Regular price $5,029.00 USD
Regular price Sale price $5,029.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
capacity: 36000 BTU
category: Furnace & Air Conditioner Systems
furnace_efficiency_afue: 96%
heating_capacity: 100000 BTU
manufacturer: Goodman
mpn: GSXH503610CHPTA3630C4GC9S961005CN
subcategory: Furnace & Air Conditioner Systems
weight: 438

Product Description

Goodman - GSXH503610CHPTA3630C4GC9S961005CN If you™re looking to reduce your energy bill and improve the comfort of your home, look no further than Goodman™s GC9S961005CN. This gas furnace features efficient operation and high-quality construction to provide your home with reliable, affordable heating. The GC9S961005CN single-stage, 9-speed furnace is a great value designed for many applications.

Features
  • This furnace is ideal to heat a large house (depending on climate)
  • 100,000 BTU 96% efficient natural gas furnace
  • Requires plastic/pvc flue venting
  • Can be used in the downflow or horizontal orientation
  • Can be converted to an LP furnace with a conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

Additional Information

MPN GC9S961005CN
Weight (in lbs) 144.000000
Exhaust Flue Requirement Plastic / PVC
Brand/Manufacturer Goodman
Furnace Efficiency / AFUE 96%
Heating BTU 100,000
Blower Motor 9 Speed - ECM
Maximum CFM 2000
Configuration Downflow/Horizontal
Exhaust Pipe PVC
Flue Location Right
Electrical 115 V. 1 Phase 60 Hz
Burner Stages Single
Fuel Type Propane, Natural Gas
Height 34.5"
Width 21"
Depth 28.75"
Warranty 10 Years with Online Registration

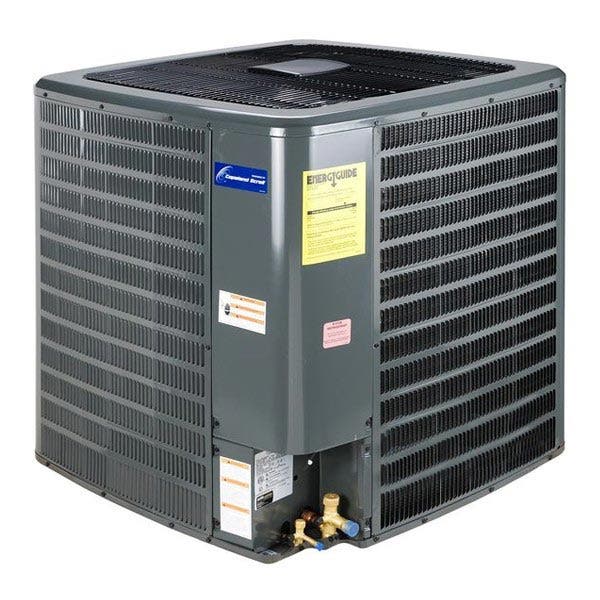

3 Ton 15.2 SEER2 High Efficiency Goodman Air Conditioner Condenser

Goodman has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The GSXH503610 is no exception, with its durability, reliability, and one of the highest efficiencies available.

Features
  • Ideal size to cover a smaller house in ideal climates
  • 3 ton, 15.2 SEER2 AC-only condenser
  • Fully charged for up to 15' of line set
  • Low sound output
  • Factory-installed filter drier

Additional Information

MPN GSXH503610
Weight (in lbs) 224.000000
Brand/Manufacturer Goodman
Replaces GSX160361
Cooling BTU 36,000
Blower Motor Single Speed PSC Motor
Decibel Level (dBA) 75
Horsepower 0.167 HP
Refrigerant R410A
SEER2 (Efficiency) 15.2
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Line 3/8"
Suction Line 7/8"
Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 30 Amps
Min. Breaker Size 18.6 Amps
Tonnage 3 Ton
Connection Sweat
Height 39 1/2"
Width 35 1/2"
Depth 35 1/2"
Warranty 10 Years Parts with Online Registration

3 Ton 21" Height Goodman Horizontal Evaporator Coil - Cased

The Goodman CHPTA3630C4 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPTA3630C4 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Features
  • 3 ton horizontal evaporator coil
  • Can be used with heat pump and AC-only condensers
  • Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
  • Factory-installed TXV kit

Additional Information

MPN CHPTA3630C4
Weight (in lbs) 70.000000
Brand/Manufacturer Goodman
Configuration Horizontal
Refrigerant R410A
Liquid Line 3/8"
Suction Line 7/8"
Tonnage 3 Ton
Style A-Coil
Certification ETL Listed
Height 21"
Width 30"
Depth 21"
Warranty 10 Years Parts with Online Registration
